  9. INV MJ 1X4 PNL GRD LED I106(G/Y).120 ST
This item is Discontinued.

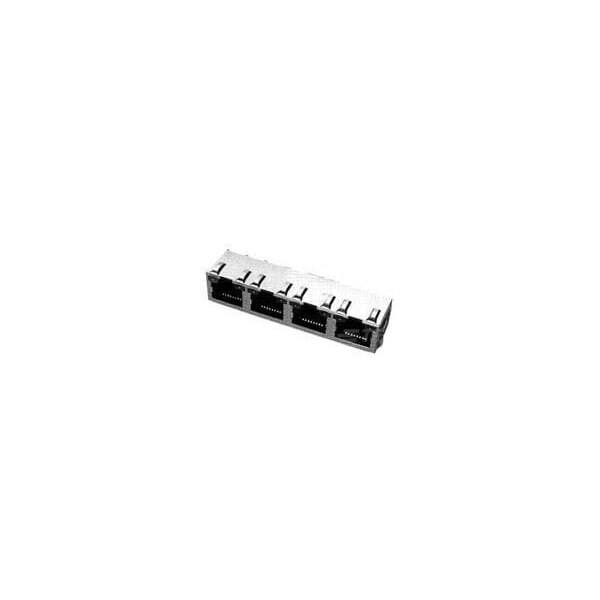

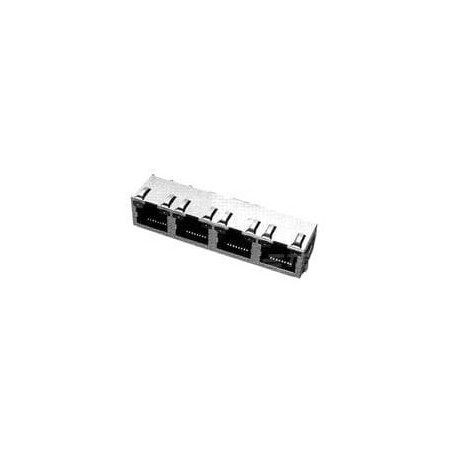

Te Connectivity INV MJ 1X4 PNL GRD LED I106(G/Y).120 ST 1-5406552-1

INV MJ 1X4 PNL GRD LED I106(G/Y).120 ST (Discontinued)

  • Mfr # 1-5406552-1
  • Zoro # G401034137
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1-5406552-1
Zoro #
G401034137
UPC #
-
Country of Origin
China

Dimensions

Connector Height
.525 in
PCB Tail Length
.12 in
Contact Mating Area Plating Material Thickness
50µin

Details

Shielded
Yes
Number of Positions
8
UL Flammability Rating
UL 94V-0
Connectors & Connector Components Type
Connector
Performance Category
Cat 5
LED Color (Top Right)
Yellow
Status Indicator
LED
Connector Style
Jack
LED Color (Top Left)
Yellow
Contact Mating Area Plating Material
Gold
Latch Orientation
Inverted - Latch Up
Number of Contacts Loaded
8
Connector Contact Density
Standard
Keyed
No
Housing Color
Black
Panel Mount Feature
With
Shield Material
Copper Zinc Alloy
PCB Mount Orientation
Right Angle
Operating Temperature Range
-40 to 185°F
Contact Underplating Material
Nickel
Contact Base Material
Phosphor Bronze
Multiple Port Configuration
Ganged
Circuit Application
Signal
Number of Panel Ground Tabs
14
PCB Ground Tab Location
-3.43 mm, .135 in
Termination Method to Printed Circuit Board
Through Hole - Solder
PCB Contact Termination Area Plating Material
Tin
Contact Current Rating (Max)
1.5 A
Grounding Options
PCB and Panel Ground
Profile
Standard
Shield Plating Material
Tin over Copper
Connector Product Type
Connector Assembly
Housing Material
High Temperature Thermoplastic
Panel Mount Feature Type
Panel Stops
Centerline (Pitch)
.04 in
Connector & Contact Terminates To
Printed Circuit Board
Modular Jack & Plug Interface Type
RJ45
Port Matrix Configuration
1 x 4
Connector Mounting Type
Panel
Entry Location
Side
Port Configuration
Multiple Ports
Number of PCB Ground Tabs
4
Modular Jacks & Plugs Products
RJ Type Jacks & Plugs
