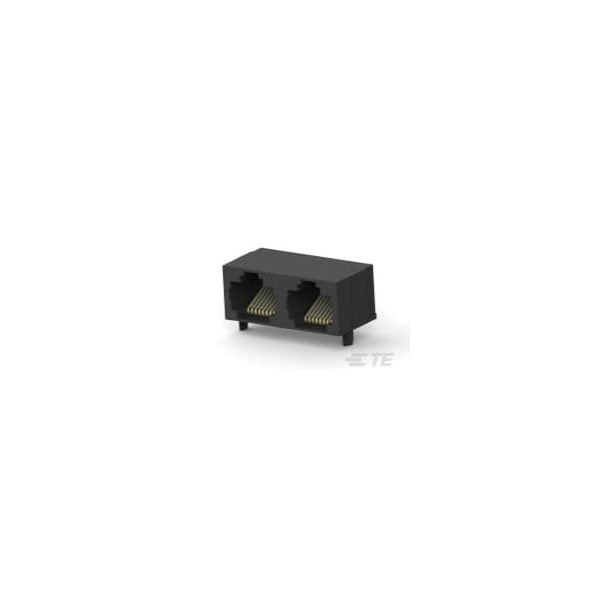

Te Connectivity INV MJ ASSY 1X2 5406526-1 - main

INV MJ ASSY 1X2

  • Mfr # 5406526-1

  • Zoro # G301034640

product price: $2.39
/ea
Sold in multiples of 29 for $69.31

Key Features

Shielded
No
Number of Positions
8
Port Configuration
Multiple Ports
PCB Mount Orientation
Right Angle
Latch Orientation
Inverted - Latch Up
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
5406526-1
Zoro #
G301034640
UPC #
-
Country of Origin
China

Dimensions

Contact Mating Area Plating Material Thickness
50µin
PCB Tail Length
.1 in
Connector Height
.505 in

Details

Shielded
No
Number of Positions
8
Port Configuration
Multiple Ports
PCB Mount Orientation
Right Angle
Latch Orientation
Inverted - Latch Up
Contact Mating Area Plating Material
Gold
Keyed
No
Performance Category
Cat 5
Number of Contacts Loaded
8
UL Flammability Rating
UL 94V-0
Connector Style
Jack
Multiple Port Configuration
Ganged
Status Indicator
None
Modular Jack & Plug Interface Type
RJ45
Contact Underplating Material
Nickel
Connector & Contact Terminates To
Printed Circuit Board
Housing Material
High Temperature Thermoplastic
Connector Product Type
Connector Assembly
Housing Color
Black
Contact Base Material
Phosphor Bronze
Termination Method to Printed Circuit Board
Through Hole - Solder
Modular Jacks & Plugs Products
RJ Type Jacks & Plugs
Connector Mounting Type
Board Mount
PCB Contact Termination Area Plating Material
Tin
Connectors & Connector Components Type
Connector
Grounding Options
None
Contact Current Rating (Max)
1.5 A
Connector Contact Density
Standard
Operating Temperature Range
-40 to 185°F
Centerline (Pitch)
.04 in
Entry Location
Side
Port Matrix Configuration
1 x 2
Circuit Application
Signal
Panel Mount Feature
Without
Profile
Standard
