This item is Discontinued.

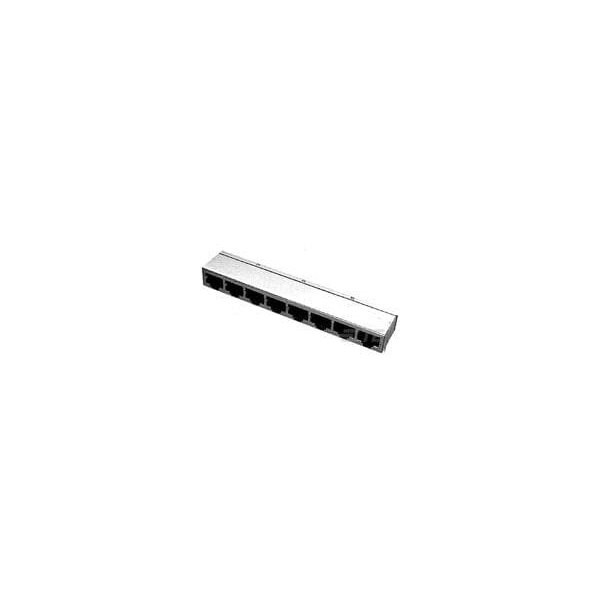

INV MJ ASSY 1X8 PNL GRD (Discontinued)
-
Mfr #
5406967-4
-
Zoro #
G701034837
Shop for similar items
Specifications
Contact Mating Area Plating Material Thickness
50µin
Shield Material
Copper Zinc Alloy
Termination Method to Printed Circuit Board
Through Hole - Solder
PCB Contact Termination Area Plating Material
Tin
Connector Contact Density
Standard
Port Matrix Configuration
1 x 8
Connector Product Type
Connector Assembly
Number of PCB Ground Tabs
4
Circuit Application
Signal
UL Flammability Rating
UL 94V-0
Grounding Options
PCB and Panel Ground
Housing Material
High Temperature Thermoplastic
Modular Jack & Plug Interface Type
RJ45
Performance Category
Cat 5
Contact Mating Area Plating Material
Gold
Operating Temperature Range
-40 to 185°F
Shield Panel Ground Type
Shield has bottom panel grounds.
Number of Contacts Loaded
8
LED Color (Top Left)
Green
Connector Mounting Type
Panel
Modular Jacks & Plugs Products
RJ Type Jacks & Plugs
Number of Panel Ground Tabs
20
Port Configuration
Multiple Ports
Connector & Contact Terminates To
Printed Circuit Board
Centerline (Pitch)
.04 in
Latch Orientation
Inverted - Latch Up
Connectors & Connector Components Type
Connector
Shield Plating Material
Tin over Copper
Contact Underplating Material
Nickel
PCB Ground Tab Location
-3.43 mm, .135 in
LED Color (Top Right)
Yellow
PCB Mount Orientation
Right Angle
Multiple Port Configuration
Ganged
Panel Mount Feature
Without
Contact Current Rating (Max)
1.5 A
Contact Base Material
Phosphor Bronze
