  9. Invertible Modular Jack 8P shielded

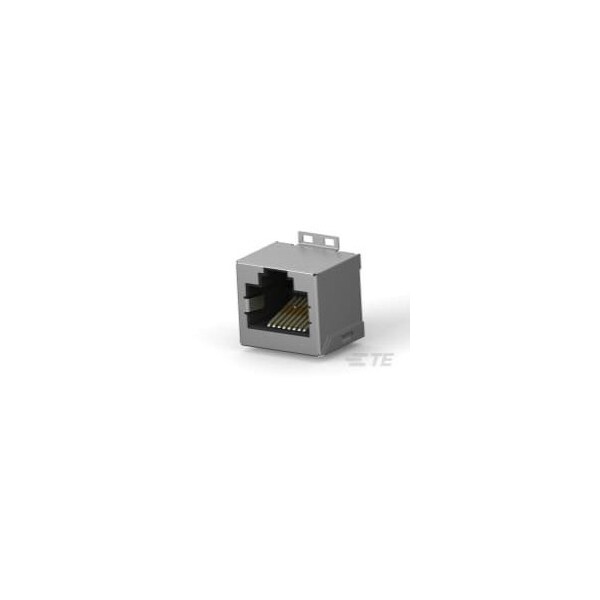

Te Connectivity Invertible Modular Jack 8P shielded 1705549-1 - main

Invertible Modular Jack 8P shielded

  • Mfr # 1705549-1

  • Zoro # G200979394

product price: $2.39
/ea
Sold in multiples of 250 for $597.50

Key Features

Shielded
Yes
Number of Positions
8
Contact Underplating Material
Nickel
Centerline (Pitch)
.04 in
Contact Current Rating (Max)
1.5 A
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1705549-1
Zoro #
G200979394
UPC #
-
Country of Origin
India

Dimensions

Contact Mating Area Plating Material Thickness
30µin
Connector Height
.512 in
PCB Tail Length
.51 in

Details

Shielded
Yes
Number of Positions
8
Contact Underplating Material
Nickel
Centerline (Pitch)
.04 in
Contact Current Rating (Max)
1.5 A
Panel Mount Feature
Without
Profile
Standard
Connector Contact Density
Standard
Modular Jack & Plug Interface Type
RJ45
Keyed
No
Port Configuration
Single Port
Connector & Contact Terminates To
Printed Circuit Board
Contact Mating Area Plating Material
Gold
PCB Mount Orientation
Vertical
Connector Mounting Type
Board Mount
Modular Jacks & Plugs Products
RJ Type Jacks & Plugs
Status Indicator
None
Housing Color
Black
PCB Contact Termination Area Plating Material
Tin
Shield Plating Material
Tin
Operating Temperature Range
-40 to 158°F
Grounding Options
PCB Ground
Connector Style
Jack
Shield Material
Brass
Performance Category
Cat 3
Number of PCB Ground Tabs
2
Termination Method to Printed Circuit Board
Surface Mount
Contact Base Material
Phosphor Bronze
Connector Product Type
Connector Assembly
Number of Contacts Loaded
8
Connectors & Connector Components Type
Connector
Entry Location
Top
Circuit Application
Signal
UL Flammability Rating
UL 94V-0
Housing Material
High Temperature Thermoplastic
Port Matrix Configuration
1 x 1
