Shop TE CONNECTIVITY

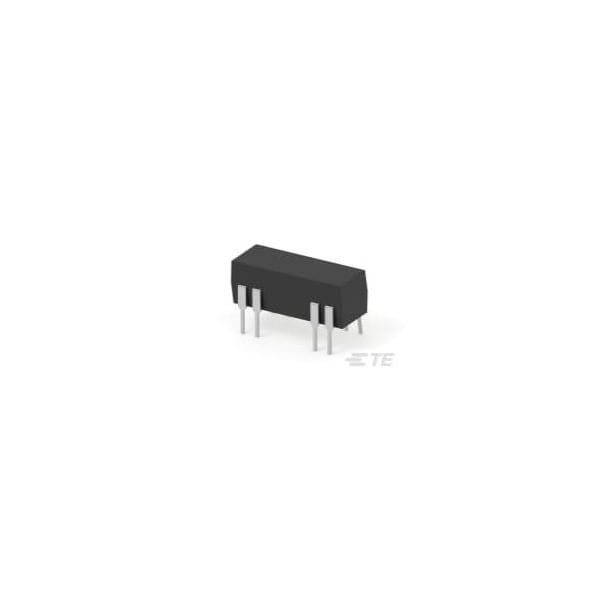

JWD-171-10=REED RELAYS

  • Mfr # 1393771-7

  • Zoro # G400973628

product price:  $14.15
/ea
Sold in multiples of 25 for $353.75

Key Features

Coil Voltage
24V DC
Body Depth - Relay
0.77 in
Features
Monostable, DC Magnetic System; Coil Suppression Diode, UL Coil Insulation; Reed Contacts
Body Width - Relay
0.3 in
Body Height - Relay
0.315 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
1393771-7
Zoro #
G400973628
UPC #
-
Country of Origin
China

Dimensions

Body Depth - Relay
0.77 in
Body Width - Relay
0.3 in
Body Height - Relay
0.315 in

Details

Item
Reed Relay
Coil Voltage
24V DC
Features
Monostable, DC Magnetic System; Coil Suppression Diode, UL Coil Insulation; Reed Contacts
Power Consumption - Relay
50 to 288 mW
Protection Category
RTIII
Operating Temp. Range
-35 to 85°C
Coil Resistance
2150 Ohm
Dielectric Strength
500 Vrms Between Adjacent Contacts; 0 to 500 V Between Coil/Contact Class; 250 Vrms Between Open Contacts
Contact Rating (DC)
0.5 A @ 20V
Base Shape
Square
Mounting Style
PCB
Electrical Connection
PCB - Through Hole
Contact Form
SPST-NO
Number of Pins
14
Current Rating
500 mA
