Shop TE CONNECTIVITY

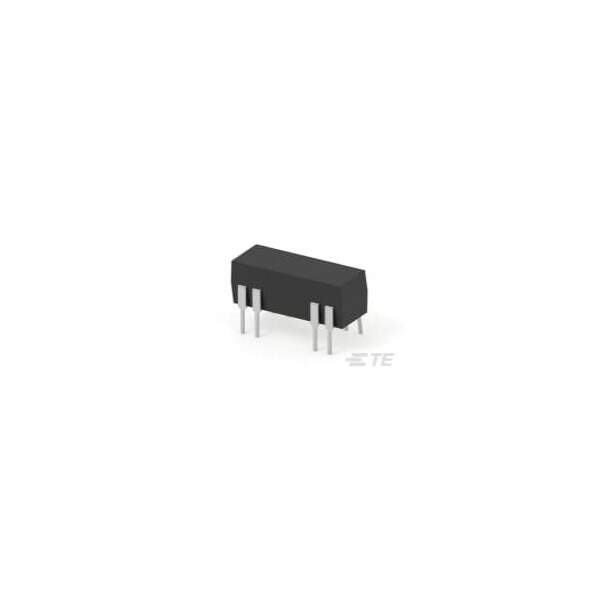

JWD-171-19=REED RELAYS

  • Mfr # 1-1393771-2

  • Zoro # G200973293

product price:  $18.99
/ea
Sold in multiples of 8 for $151.92

Key Features

Coil Voltage
12V DC
Body Width - Relay
0.3 in
Power Consumption - Relay
50 to 288 mW
Features
Monostable, DC Magnetic System; Coil Suppression Diode, UL Coil Insulation; Reed Contacts
Body Height - Relay
0.315 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
1-1393771-2
Zoro #
G200973293
UPC #
-
Country of Origin
Mexico

Dimensions

Body Width - Relay
0.3 in
Body Height - Relay
0.315 in
Body Depth - Relay
0.77 in

Details

Item
Reed Relay
Coil Voltage
12V DC
Power Consumption - Relay
50 to 288 mW
Features
Monostable, DC Magnetic System; Coil Suppression Diode, UL Coil Insulation; Reed Contacts
Protection Category
RTIII
Dielectric Strength
0 to 500 V Between Coil/Contact Class; 250 Vrms Between Open Contacts
Coil Resistance
1200 Ohm
Operating Temp. Range
-35 to 85°C
Contact Rating (DC)
0.5 A @ 20V
Number of Pins
14
Contact Form
1 Form B, 1 NCO contact
Mounting Style
PCB
Current Rating
500 mA
Electrical Connection
PCB - Through Hole
Base Shape
Square
