This item is Discontinued.

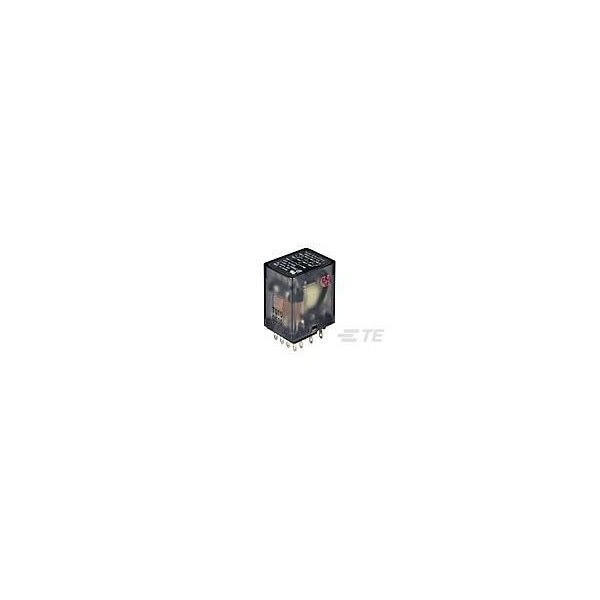

Te Connectivity KHAU-17A12-120=KH 2-1393122-8

KHAU-17A12-120=KH (Discontinued)

  • Mfr # 2-1393122-8
  • Zoro # G900976006
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
2-1393122-8
Zoro #
G900976006
UPC #
-
Country of Origin
China

Dimensions

Height Class (Mechanical)
30 to 40 mm
Width Class (Mechanical)
20 to 25 mm
Product Length
1.111 in
Product Height
1.261 in
Length Class (Mechanical)
25 to 30 mm
Product Width
.858 in

Details

Contact Material
AgCdO
Contact Limiting Short-Time Current
5A
Environmental Ambient Temperature Class
50 to 70°C
Terminal Type
Solder, Plug-In
Coil Power Rating Class
1 to 2 VA
Relay Mounting Type
Socket
Contact Arrangement
4 Form C (CO)
Environmental Category of Protection
RTI
Contact Switching Load (Min)
300mA @ 12V
Insulation Initial Dielectric Between Adjacent Contacts
1500 Vrms
Coil Resistance
3900 Ω
Coil Special Features
UL Coil Insulation Class B
Coil Power Rating AC
1.35 VA
Contact Current Class
16 A, 5 to 10 A
Actuating System
AC
Contact Limiting Making Current
5A
Insulation Initial Dielectric Between Contacts & Coil
1500 Vrms
Insulation Initial Dielectric Between Coil & Contact Class
1000 to 1500 V
Insulation Initial Resistance
100 MΩ
Operating Temperature Range
-45 to 70°C
Environmental Ambient Temperature (Max)
70°C
Contact Current Rating (Max)
5A
Insulation Initial Dielectric Between Open Contacts
1000 Vrms
Coil Voltage Rating
120 VAC
Contact Limiting Continuous Current
5A
Contact Voltage Rating
240 VAC
Contact Number of Poles
4
Power Relay Type
Industrial Panel Plug-In
Coil Magnetic System
Monostable, AC
Contact Limiting Breaking Current
5A
