  9. KIT 175A 4 AWG GRAY

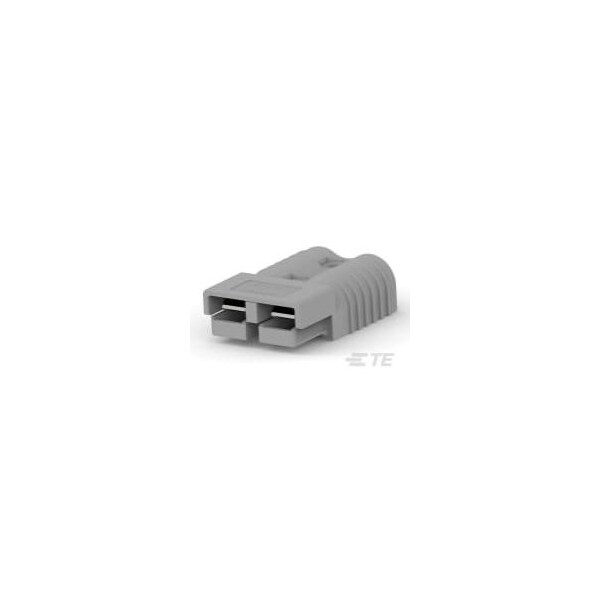

Te Connectivity KIT 175A 4 AWG GRAY 1604044-4 - main

KIT 175A 4 AWG GRAY

  • Mfr # 1604044-4

  • Zoro # G701037562

product price: $34.65
/ea
Sold in multiples of 50 for $1,732.50

Key Features

Type
Connector Assembly
Number of Contacts
2
Maximum Wire Size
4 AWG
Color
Gray
Insulation Material
Polycarbonate
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1604044-4
Zoro #
G701037562
UPC #
-
Country of Origin
United States

Dimensions

Maximum Wire Size
4 AWG
Width
2.11 in
Length
78.2 mm
Height
25.4 mm

Details

Item
Connector Assembly
Type
Connector Assembly
Number of Contacts
2
Color
Gray
Insulation Material
Polycarbonate
Maximum Voltage
600 V AC/DC
Current
175 A
Maximum Operating Temperature
105 Degrees C
UL 94 Flammability Rating
V-0
Wire Type
Stranded
Max. Temp.
105°C
Material
Polycarbonate
Max. Voltage
600V AC/DC
Standards
UL E28476; UL Recognized
Application
Power
Hole Center to Center
19.06 mm
Wire Range
4 AWG
Terminal Type
Crimp
Contact Type
Pin/Socket
Current Rating
175 A
Connector Terminates To
Wire & Cable
Flammability Rating
UL 94 V-0
Termination Style
Crimp
