Shop TE CONNECTIVITY

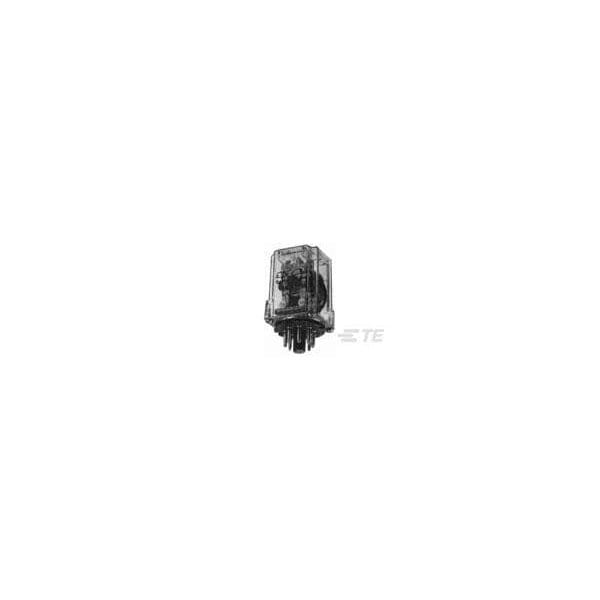

Krp-14Ag-240=Ka/Kb/Kc/Kr

  • Mfr # 9-1393101-8
  • Zoro # G605930563
product price:
$
90.89
/ea

Key Features

Coil Voltage
240V AC
Number of Poles
3
Full Load Current - Inductive
10 A
Terminal Connection Type
Plug-In
Contact Material
AgCdO
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
9-1393101-8
Zoro #
G605930563
UPC #
-
Country of Origin
Mexico

Dimensions

Product Width
1.405 in
Product Height
2 in
Height Class (Mechanical)
50 to 60 mm
Product Length
1.406 in
Width Class (Mechanical)
30 to 40 mm
Length Class (Mechanical)
35 to 40 mm

Details

Item
Definite Purpose Contactor
Coil Voltage
240V AC
Number of Poles
3
Full Load Current - Inductive
10 A
Terminal Connection Type
Plug-In
Contact Material
AgCdO
Coil Special Features
UL Coil Insulation Class B
Insulation Initial Dielectric Between Contacts & Coil
1000 Vrms
Contact Current Class
16 A, 5 to 10 A
Contact Current Rating (Max)
10A
Contact Switching Load (Min)
300mA @ 12V
Environmental Category of Protection
RTI
Contact Voltage Rating
240 VAC
Terminal Type
Plug-In
Coil Magnetic System
Monostable, AC
Contact Arrangement
3 Form C (CO)
Operating Temperature Range
-45 to 55°C
Insulation Initial Resistance
1000 MΩ
Power Relay Type
Industrial Panel Plug-In
Actuating System
AC
Relay Mounting Type
Socket
Environmental Ambient Temperature (Max)
55°C
Insulation Initial Dielectric Between Open Contacts
1000 Vrms
Coil Resistance
9110 Ω
