  13. KUHP-11D17-12=RELAY 2C AGCDO PCB DUST
This item is Discontinued.

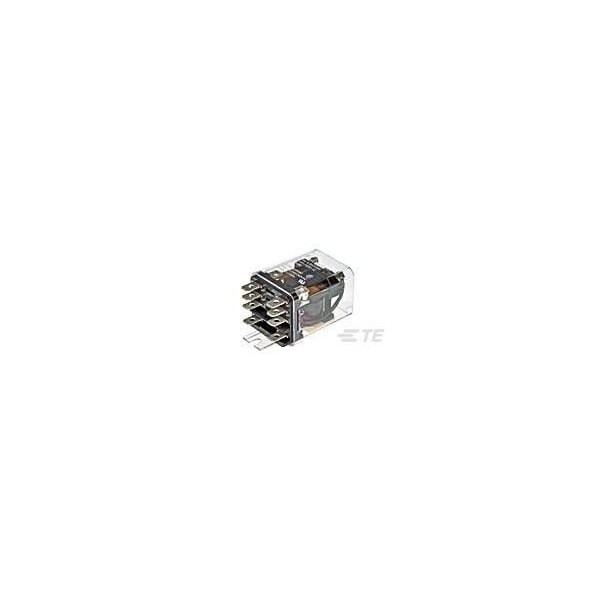

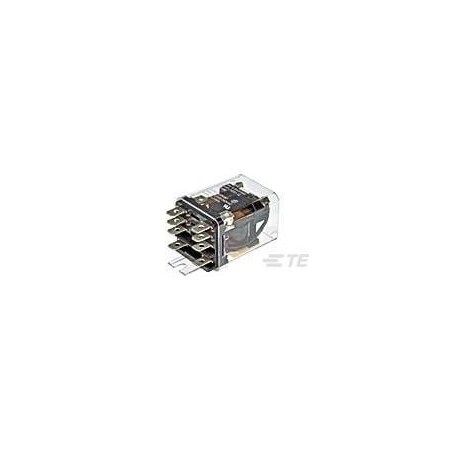

Te Connectivity KUHP-11D17-12=RELAY 2C AGCDO PCB DUST 5-1423996-4

KUHP-11D17-12=RELAY 2C AGCDO PCB DUST (Discontinued)

  • Mfr # 5-1423996-4
  • Zoro # G800975727
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
5-1423996-4
Zoro #
G800975727
UPC #
-
Country of Origin
Mexico

Dimensions

Length Class (Mechanical)
35 to 40 mm
Product Length
1.55 in
Width Class (Mechanical)
30 to 40 mm
Product Width
1.405 in
Product Height
1.97 in
Height Class (Mechanical)
40 to 50 mm

Details

Item
PCB Relay
Mounting Style
Socket
Electrical Connection
PCB-THT
Coil Voltage
12 VDC
Contact Material
AgCdO
Contact Number of Poles
2
Coil Magnetic System
Monostable, DC
Contact Arrangement
2 Form C (CO)
Coil Resistance
120 Ω
Insulation Initial Dielectric Between Adjacent Contacts
3750 Vrms
Environmental Category of Protection
RTI
Insulation Initial Dielectric Between Coil & Contact Class
3500 to 4000 V
Coil Power Rating DC
1200 mW
Operating Temperature Range
-40 to 70°C
Contact Current Class
10 to 20 A, 16 A
Insulation Initial Dielectric Between Contacts & Coil
3750 Vrms
Insulation Initial Dielectric Between Open Contacts
1200 Vrms
Contact Limiting Making Current
20 A
Environmental Ambient Temperature Class
50 to 70°C
Insulation Initial Resistance
100 MΩ
Coil Power Rating Class
1000 to 1500 mW
Power Relay Type
Industrial Panel Plug-In
Contact Limiting Continuous Current
20 A
Contact Limiting Breaking Current
20 A
Environmental Ambient Temperature (Max)
70°C
Actuating System
DC
Contact Switching Load (Min)
300mA @ 12V
Contact Current Rating (Max)
20 A
Contact Voltage Rating
240 VAC
Contact Limiting Short-Time Current
20 A
Coil Special Features
UL Coil Insulation Class B
