  13. LO PROFILE DIP SW 8P AU
This item is Discontinued.

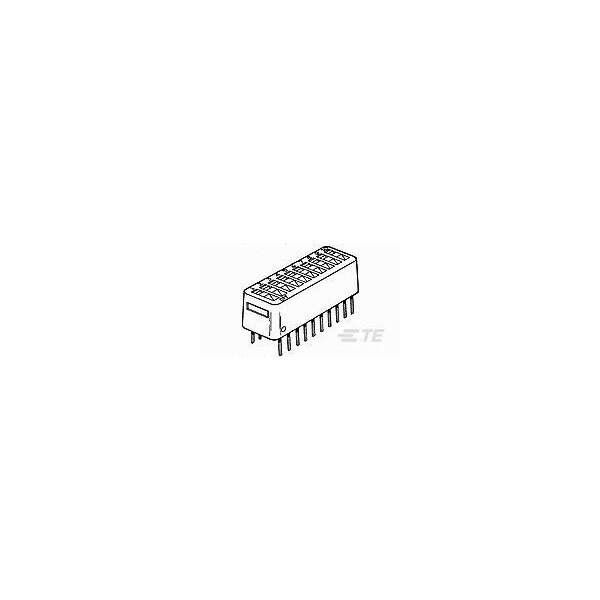

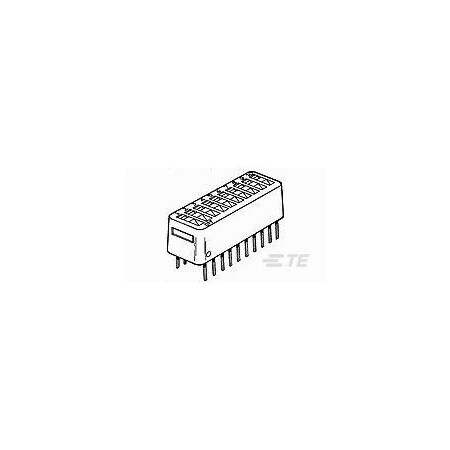

Te Connectivity LO PROFILE DIP SW 8P AU 435668-7

LO PROFILE DIP SW 8P AU (Discontinued)

  • Mfr # 435668-7
  • Zoro # G600966185
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
435668-7
Zoro #
G600966185
UPC #
-
Country of Origin
Mexico

Dimensions

Height
7.36 mm [ .29 in ]
Length
22.35 mm [ .88 in ]
Contact Mating Area Plating Thickness (µin)
30
Termination Post Length
3.56 mm [ .14 in ]

Details

Operating Temperature Range (°C)
-55 to 105
Housing Material
Polyester GF
Switch Type
DIP
Low Profile
Yes
Sealed
No
Solder Tail Contact Plating
Gold over Nickel
Contact Current Rating (A)
1
Number of Switches
8
Number of Positions
8
Auto-Insertable
No
Voltage Rating (VDC)
40
Mounting Type
Through Hole
Contact Mating Area Plating Material
Gold
Product Type
Switch
UL Flammability Rating
UL 94V-0
Contact Base Material
Copper Alloy
Centerline
2.54 mm [ .1 in ]
Mounting Angle
Vertical
Actuator Style
Rocker (Top Actuated)
Housing Color
Blue
Configuration (Pole-Throw)
Single Pole - Single Throw
