Shop TE CONNECTIVITY

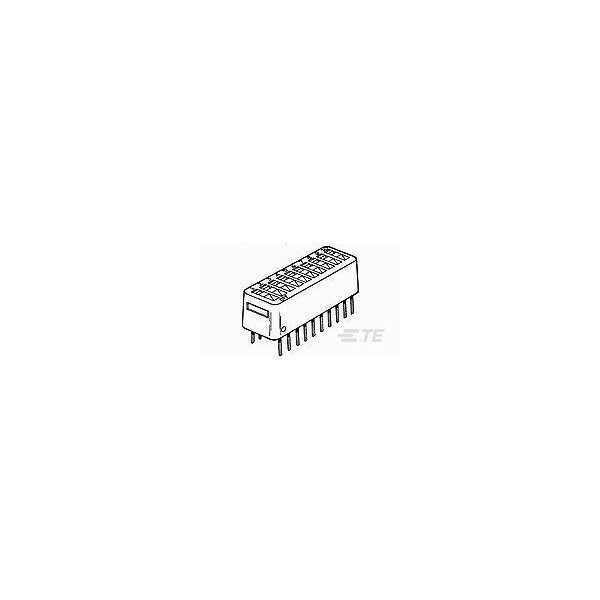

LOW PRO DIP SW 8POS W/TAPE AU

  • Mfr # 9-435626-2
  • Zoro # G300967277
product price:
$
2.15
/ea
Sold in multiples of 33 for $70.95

Key Features

Height
7.36 mm [ .29 in ]
Length
22.35 mm [ .88 in ]
Auto-Insertable
No
Contact Base Material
Gold
Contact Mating Area Plating Material
Gold
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
9-435626-2
Zoro #
G300967277
UPC #
-
Country of Origin
Mexico

Dimensions

Height
7.36 mm [ .29 in ]
Length
22.35 mm [ .88 in ]
Termination Post Length
3.56 mm [ .135 in ]

Details

Auto-Insertable
No
Contact Base Material
Gold
Contact Mating Area Plating Material
Gold
Mounting Angle
Vertical
Operating Temperature Range (°C)
-55 to 105
Number of Switches
8
Number of Positions
8
Product Type
Switch
Mounting Type
Through Hole
Sealed
Yes
Centerline
2.54 mm [ .1 in ]
Actuator Style
Recessed Rocker
Voltage Rating (VDC)
50
Housing Color
Black
Solder Tail Contact Plating
Gold over Nickel
Configuration (Pole-Throw)
Single Pole - Single Throw
Seal Type
Tape
Contact Current Rating (A)
1.5
Housing Material
Glass-Filled Polyester
Switch Type
DIP
Low Profile
Yes
UL Flammability Rating
UL 94V-0
