Product Information
MFR #
172520-4
Zoro #
G200937417
UPC #
-
Country of Origin
China
Dimensions
Height
5 mm
Length
0.43 in
Details
Item

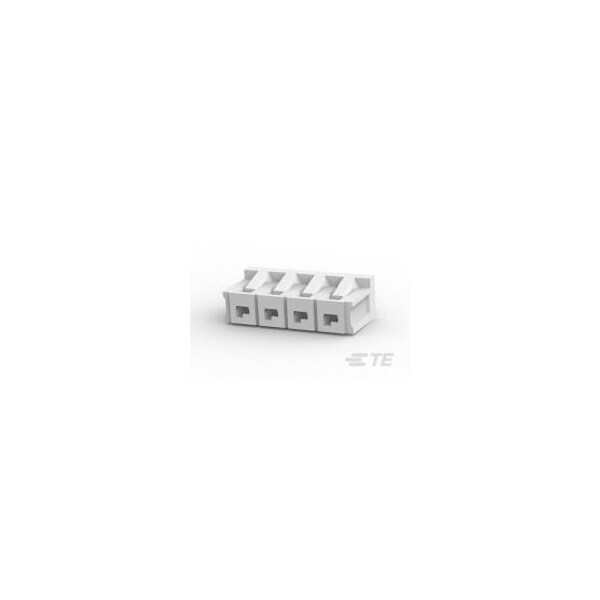

PCB Mount Header
Color
Natural
Insulation Material
Nylon
Max. Voltage
250V AC/DC
Maximum Voltage
250 V AC/DC
Application
Signal
Maximum Operating Temperature
105 Degrees C
UL 94 Flammability Rating
V-0
Features
Shrouded
For Use With
Low Profile, Mini AMP-IN Header Crimp Type
Hole Center to Center
2.5 mm
Terminal Type
Solder
Material
Nylon
Max. Temp.
105°C
Number of Rows
1
Contact Type
Pin
Number of Contacts
4
Flammability Rating
UL 94 V-0
Connector Terminates To
Printed Circuit Board
Terminal Finish
Pre-Tin Plated
