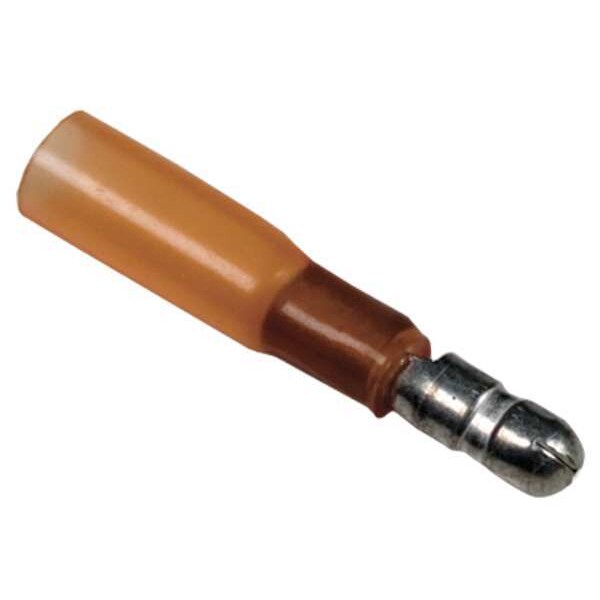

Male Bullet Disconnect, Red, 22-18AWG, PK25 (Discontinued)
- Mfr # CPGI-B-106-7401-25
- Zoro # G4499582
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
CPGI-B-106-7401-25
Zoro #
G4499582
UPC #
-
Country of Origin
Mexico
Dimensions
Tab Size
0.150 in
Overall Length
1.32 in
Barrel Inside Dia.
0.055 in
Maximum Wire Size
18 AWG
Barrel Inside Diameter
0.055 in
Minimum Wire Size
22 AWG
Tab Width
0.15 in
Strip Length
1/4 in
Wire Size Range
22 AWG - 18 AWG
For Wire Size
18 AWG, 20 AWG, 22 AWG
Description
Male Bullet Disconnect, Contact Finish Tin, Contact Material Copper, Disconnect Style Bullet, Insulation Color Red, Insulation Coverage Full Coverage, Insulation Material Nylon, Maximum Operating Temperature 257 Degrees F, Minimum Wire Size 22 AWG, Maximum Wire Size 18 AWG, Maximum Voltage 600 V, Tab Width 0.15 in, Terminal Type Tab, Termination Style Crimp, Seam Style Brazed, Standards E157833, E87681, UL Listed, Barrel Inside Diameter 0.055 in, Insulation Type Heat Shrink
