Shop TE CONNECTIVITY

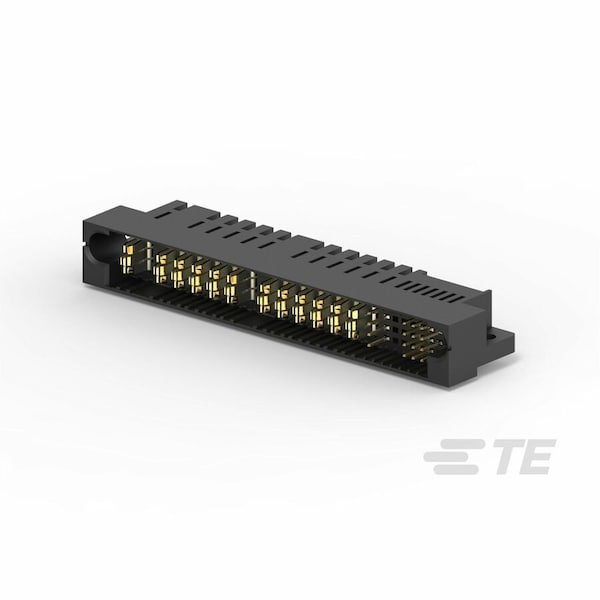

MBXL R/A HDR 12P+28S

  • Mfr # 1892222-6

  • Zoro # G000937945

product price:  $22.35
/ea
Sold in multiples of 7 for $156.45

Key Features

Color
Black
Insulation Material
High Temperature Thermoplastic
Max. Voltage
60V AC/DC
Maximum Voltage
60 V AC/DC
Application
Power, Signal
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
1892222-6
Zoro #
G000937945
UPC #
-
Country of Origin
China

Dimensions

Contact Plating Thickness
0.76 µm

Details

Item
Header
Color
Black
Insulation Material
High Temperature Thermoplastic
Max. Voltage
60V AC/DC
Maximum Voltage
60 V AC/DC
Application
Power, Signal
Current
42 A
Maximum Operating Temperature
105 Degrees C
UL 94 Flammability Rating
V-0
Terminal Type
Through Hole - Solder
Max. Temp.
105°C
Hole Center to Center
5.08 mm; 2.54 mm; 9.52 mm
Material
High Temperature Thermoplastic
Contact Type
Pin
Contact Finish
Noble Metal Plated
Number of Contacts
40
Current Rating
42 A
Flammability Rating
UL 94 V-0
Connector Terminates To
Printed Circuit Board
Terminal Finish
Tin Plated
