Product Information
MFR #
5-6450540-3
Zoro #
G101069453
UPC #
-
Country of Origin
China
Dimensions
Contact Plating Thickness
0.076 µm
Details
Item

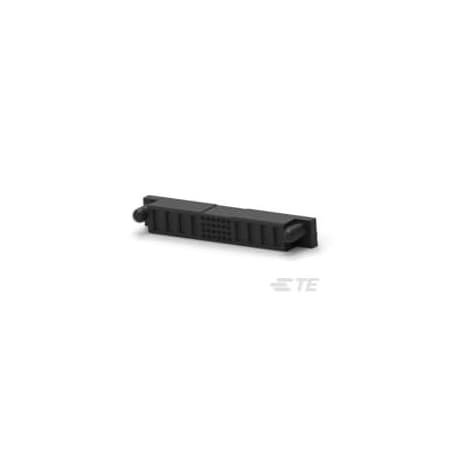

Connector Assembly
Max. Voltage
200V AC/DC
Max. Temp.
105°C
Application
Power, Signal
Color
Black
Material
High Temperature Thermoplastic
Connector Terminates To
Printed Circuit Board
Hole Center to Center
6.35 mm; 2.54 mm
Current Rating
42 A
Terminal Finish
Tin Plated
Number of Rows
4
Flammability Rating
UL 94 V-0
Connection Material
Tin
Contact Type
Socket
Terminal Type
Through Hole - Press-Fit
Number of Contacts
32
Contact Finish
Noble Metal Plated
