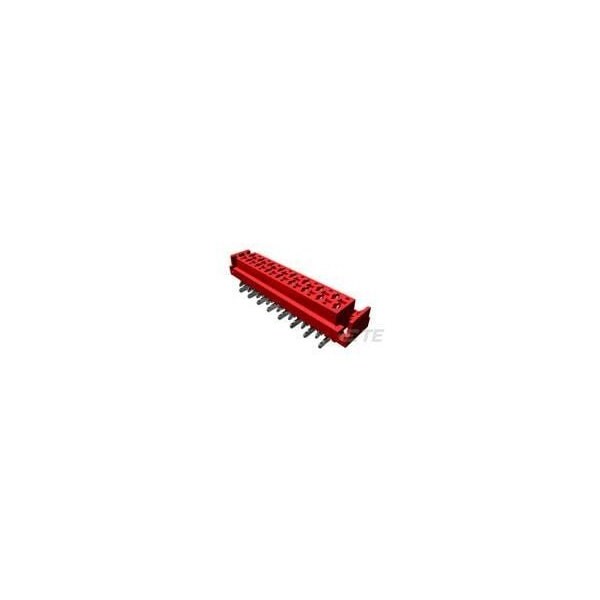

MICRO-MATCH SMD FTE
Mfr # 8-338069-4
Zoro # G401064714
product price:Â $2.99
/ea
Sold in multiples of 900 for $2,691.00
Key Features
Max. Voltage
100V AC/DC
Max. Temp.
105°C
Height
6.9 mm
Length
22.4 mm
Material
Polyamide
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 8-338069-4
- Zoro #
- G401064714
- UPC #
- -
- Country of Origin
- Switzerland
Dimensions
- Height
- 6.9 mm
- Length
- 22.4 mm
- Contact Plating Thickness
- 3 to 5 µm
Details
- Item
- Connector
- Max. Voltage
- 100V AC/DC
- Max. Temp.
- 105°C
- Material
- Polyamide
- Color
- Red
- Features
- With Board Standoff and Vacuum Tape; Shrouded
- Hole Center to Center
- 1.27 mm
- Connector Type
- Female-on-Board
- Flammability Rating
- UL 94 V-0
- Contact Finish
- Tin over Nickel
- Number of Contacts
- 14
- Terminal Type
- Surface Mount
- Connector Terminates To
- Printed Circuit Board
- Current Rating
- 1.5 A
- Connection Material
- Phosphor Bronze
- Terminal Finish
- Tin over Nickel; Tin Plated
- Contact Type
- Socket
