This item is Discontinued.

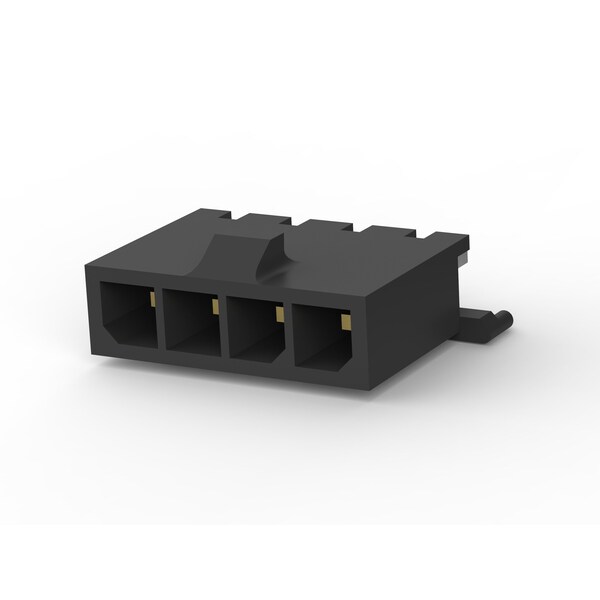

Te Connectivity MICRO MNL HDR ASSY SINGLE ROW 1445093-4

MICRO MNL HDR ASSY SINGLE ROW (Discontinued)

  • Mfr # 1445093-4
  • Zoro # G600937215
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1445093-4
Zoro #
G600937215
UPC #
-
Country of Origin
United States

Dimensions

Min. Single Wire Size
30 AWG
Max. Single Wire Size
20 AWG
Max. Insulation Dia.
1.52 mm
Minimum Single Wire Size
30 AWG
Maximum Single Wire Size
20 AWG

Details

Item
Connector
Type
Connector
Color
Black
Insulation Material
High Temperature Nylon
Max. Voltage
250V AC/DC
Maximum Voltage
250 V AC/DC
Current
5 A
Standards
CSA Certified; UL E28476; UL Recognized
Maximum Operating Temperature
105 Degrees C
Number of Ports
4
UL 94 Flammability Rating
V-0
Terminal Type
Through Hole - Solder
Max. Temp.
105°C
Hole Center to Center
3 mm
Material
High Temperature Nylon
Connector Type
Header
For Use With
Plug Housing
Number of Contacts
4
Number of Rows
1
Current Rating
5 A
Contact Type
Pin
Terminal Finish
Tin-Lead
Flammability Rating
UL 94 V-0
Termination Style
Through Hole - Solder
