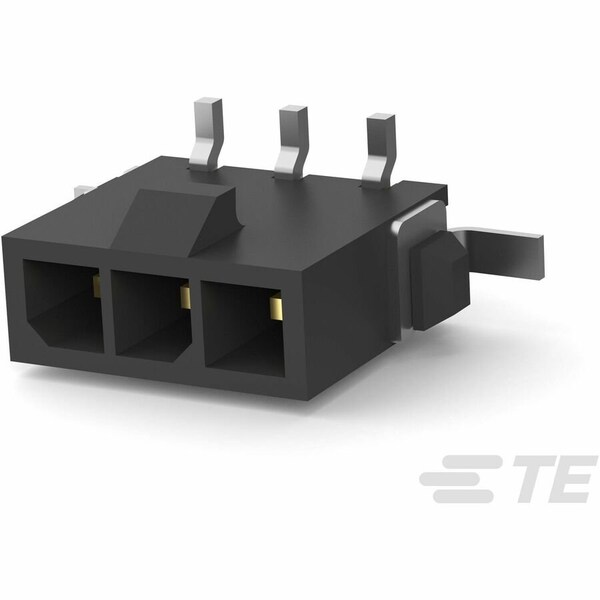

MICRO MNL HDR ASSY SINGLE ROW
Mfr # 2-1445096-3
Zoro # G300938642
product price:Â
$
2.49
/ea
Sold in multiples of 210 for $522.90
Key Features
Color
Black
Insulation Material
High Temperature Nylon
Max. Voltage
250V AC/DC
Maximum Voltage
250 V AC/DC
Application
Power
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 2-1445096-3
- Zoro #
- G300938642
- UPC #
- -
- Country of Origin
- China
- Item
- Header
- Color
- Black
- Insulation Material
- High Temperature Nylon
- Max. Voltage
- 250V AC/DC
- Maximum Voltage
- 250 V AC/DC
- Application
- Power
- Current
- 5 A
- Standards
- CSA Certified; UL E28476; UL Recognized
- Maximum Operating Temperature
- 105 Degrees C
- UL 94 Flammability Rating
- V-0
- Material
- High Temperature Nylon
- Terminal Type
- Surface Mount
- Max. Temp.
- 105°C
- Hole Center to Center
- 3 mm
- Contact Type
- Pin
- Current Rating
- 5 A
- Number of Contacts
- 3
- Number of Rows
- 1
- Contact Finish
- Gold Plated
- Flammability Rating
- UL 94 V-0
- Connector Terminates To
- Printed Circuit Board
- Terminal Finish
- Tin Plated
