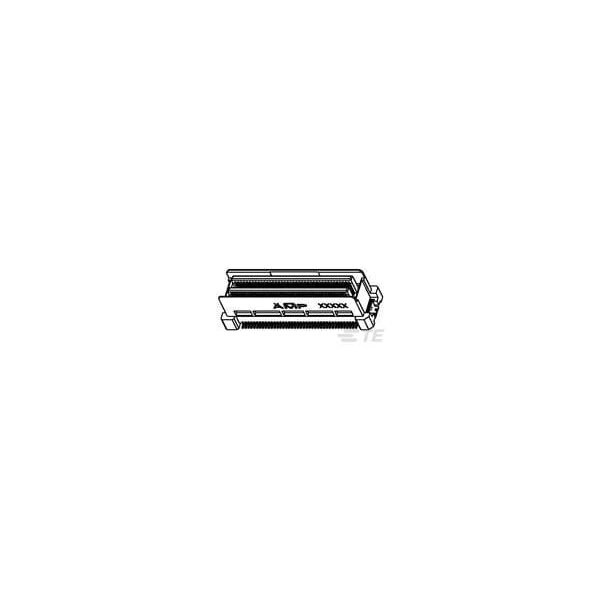

MICRO STACK HDR ASSY 80P H=9
- Mfr # 6376610-1
- Zoro # G500939647
product price:Â
$
7.25
/ea
Sold in multiples of 17 for
$123.25
Key Features
Insulation Material
Liquid Crystal Polymer
Max. Voltage
50V AC
Maximum Voltage
50 V AC
Current
0.5 A
Standards
UL 94 V-0
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 6376610-1
- Zoro #
- G500939647
- UPC #
- -
- Country of Origin
- China
Dimensions
- Height
- 9 mm
- Contact Plating Thickness
- 11.81 µin
Details
- Item
- PCB Mount Header
- Insulation Material
- Liquid Crystal Polymer
- Max. Voltage
- 50V AC
- Maximum Voltage
- 50 V AC
- Current
- 0.5 A
- Standards
- UL 94 V-0
- Maximum Operating Temperature
- 85 Degrees C
- UL 94 Flammability Rating
- V-0
- Material
- Liquid Crystal Polymer
- Connection Material
- Copper Alloy
- Hole Center to Center
- 0.6 mm
- Terminal Type
- Surface Mount
- Max. Temp.
- 85°C
- Number of Rows
- 2
- Current Rating
- 0.5 A
- Number of Contacts
- 80
- Contact Type
- Pin
- Contact Finish
- Gold Plated
- Flammability Rating
- UL 94 V-0
- Connector Terminates To
- Printed Circuit Board
- Terminal Finish
- Gold Flash
