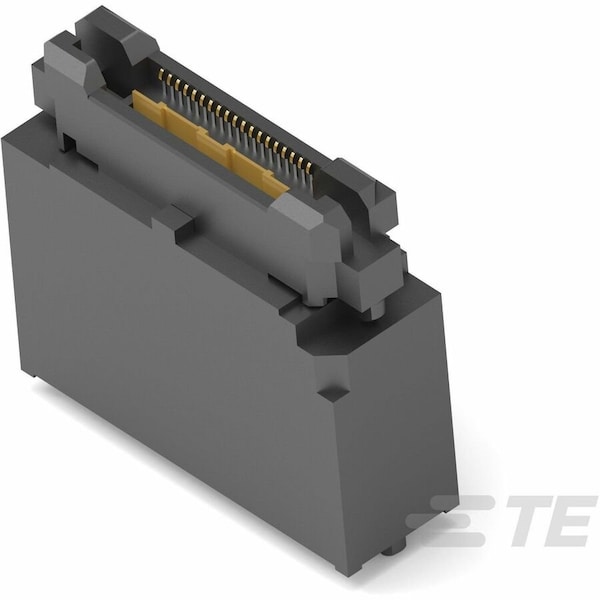

MICT 900PLUG 38 ASSY .025 REC

  • Mfr # 1-5767017-1
  • Zoro # G800945485
product price:
$
225.99
/ea
Sold in multiples of 21 for $4,745.79
Free Shipping & Returns

Key Features

Max. Voltage
30V AC, 1V DC
Maximum Voltage
30 V AC/1V DC
Application
Signal
Current
11.5 A
Series
Mictor
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
1-5767017-1
Zoro #
G800945485
UPC #
-
Country of Origin
United States

Dimensions

Width
0.32 in
Height
22.66 mm
Length
63.45 mm
Contact Plating Thickness
0.76 µm

Details

Item
PCB Mount Header
Max. Voltage
30V AC, 1V DC
Maximum Voltage
30 V AC/1V DC
Application
Signal
Current
11.5 A
Series
Mictor
Standards
CSA Certified; UL E28476; UL Listed
Maximum Operating Temperature
125 Degrees C
UL 94 Flammability Rating
V-0
Connection Material
Copper Alloy
For Use With
Receptacle Assembly
Hole Center to Center
0.64 mm
Terminal Type
Surface Mount
Max. Temp.
125°C
Features
With Boss
Contact Finish
Matte Gold Plated
Current Rating
11.5 A
Contact Type
Tab
Number of Rows
2
Number of Contacts
38
Flammability Rating
UL 94 V-0
Connector Terminates To
Printed Circuit Board
Terminal Finish
Tin Plated

Documents & Resources
