Contact our U.S. based teamSpecifications
Product Information
MFR #
5767094-1
Zoro #
G501068858
UPC #
-
Country of Origin
United States
Dimensions
Length
1 in
Width
0.315 in
Height
15.0114 mm
Contact Plating Thickness
0.76 µm
Details
Item

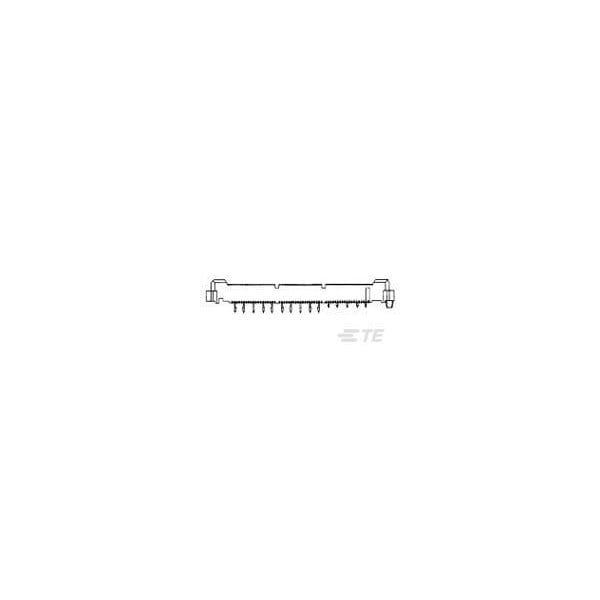

PCB Mount Receptacle
Max. Temp.
125°C
Application
Signal
Series
Mictor
Standards
CSA Certified; UL E28476; UL Listed
Features
With Boss
Contact Type
Socket
Terminal Finish
Tin Plated
Number of Rows
2
Current Rating
11.5 A
Terminal Type
Surface Mount
Hole Center to Center
0.64 mm
Contact Finish
Palladium Nickel Plated
Connector Terminates To
Printed Circuit Board
Connection Material
Copper Alloy
Number of Contacts
38
Flammability Rating
UL 94 V-0
