  11. MINI CT SGL RELAY 11P NAT
This item is Discontinued.

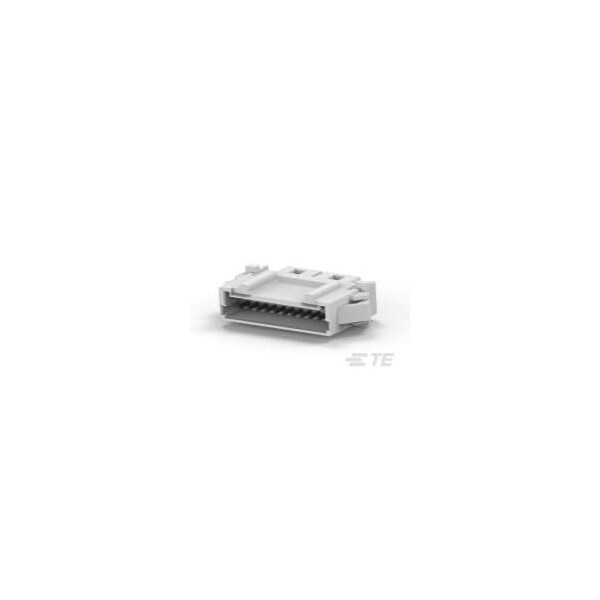

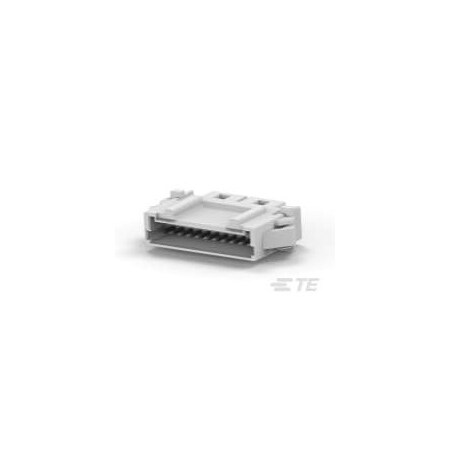

Te Connectivity MINI CT SGL RELAY 11P NAT 1-292215-1

MINI CT SGL RELAY 11P NAT (Discontinued)

  • Mfr # 1-292215-1
  • Zoro # G000973240
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1-292215-1
Zoro #
G000973240
UPC #
-
Country of Origin
China

Dimensions

Min. Single Wire Size
28 AWG
Width
0.263 in
Height
11.8 mm
Length
24.6 mm
Max. Insulation Dia.
0.041 in
Max. Single Wire Size
24 AWG
Contact Plating Thickness
1 µm
Minimum Single Wire Size
28 AWG
Maximum Single Wire Size
24 AWG

Details

Item
Connector
Color
White
Insulation Material
Nylon
Max. Voltage
50V AC/DC
Maximum Voltage
50 V AC/DC
Current
2 A
Standards
UL 94V-0; CSA Certified; UL E28476
Maximum Operating Temperature
105 Degrees C
UL 94 Flammability Rating
V-0
Connector Type
Plug
Connection Material
Brass
Max. Temp.
105°C
Wire Type
Discrete
Material
Nylon
Features
Panel Mount Feature
Hole Center to Center
1.5 mm
Current Rating
2 A
Contact Finish
Tin Plated
Contact Type
Pin
Number of Rows
1
Number of Contacts
11
Flammability Rating
UL 94 V-0
