This item is Discontinued.

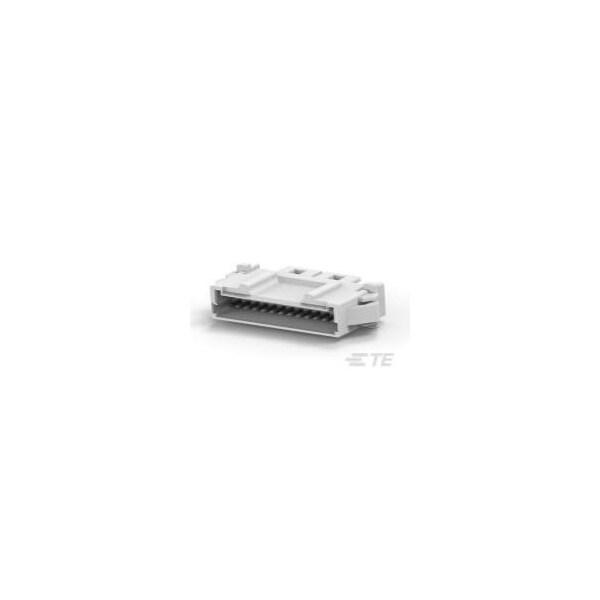

Te Connectivity MINI CT SGL RELAY 13P NAT 1-292215-3

MINI CT SGL RELAY 13P NAT (Discontinued)

  • Mfr # 1-292215-3
  • Zoro # G900973180
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1-292215-3
Zoro #
G900973180
UPC #
-
Country of Origin
China

Dimensions

Min. Single Wire Size
28 AWG
Width
0.263 in
Height
11.8 mm
Max. Single Wire Size
24 AWG
Max. Insulation Dia.
0.041 in
Length
27.6 mm
Contact Plating Thickness
1 µm
Maximum Single Wire Size
24 AWG
Minimum Single Wire Size
28 AWG

Details

Item
Connector
Color
White
Max. Voltage
50V AC/DC
Maximum Voltage
50 V AC/DC
Current
2 A
Standards
UL 94V-0; CSA Certified; UL E28476
Maximum Operating Temperature
105 Degrees C
UL 94 Flammability Rating
V-0
Wire Type
Discrete
Hole Center to Center
1.5 mm
Max. Temp.
105°C
Features
Panel Mount Feature
Material
Nylon
Connection Material
Brass
Connector Type
Plug
Contact Type
Pin
Current Rating
2 A
Number of Contacts
13
Number of Rows
1
Contact Finish
Tin Plated
Flammability Rating
UL 94 V-0
