This item is Discontinued.

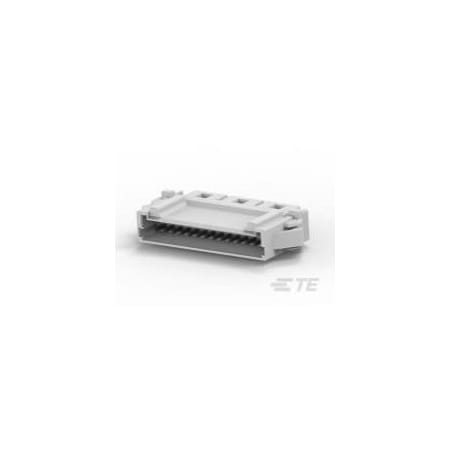

Te Connectivity MINI CT SGL RELAY 14P NAT 1-292215-4

MINI CT SGL RELAY 14P NAT (Discontinued)

  • Mfr # 1-292215-4
  • Zoro # G700973199
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
1-292215-4
Zoro #
G700973199
UPC #
-
Country of Origin
China

Dimensions

Min. Single Wire Size
28 AWG
Width
0.263 in
Height
11.8 mm
Max. Single Wire Size
24 AWG
Length
29.1 mm
Max. Insulation Dia.
0.041 in
Contact Plating Thickness
1 µm
Maximum Single Wire Size
24 AWG
Minimum Single Wire Size
28 AWG

Details

Item
Connector
Color
White
Max. Voltage
50V AC/DC
Maximum Voltage
50 V AC/DC
Current
2 A
Standards
UL 94V-0; CSA Certified; UL E28476
Maximum Operating Temperature
105 Degrees C
UL 94 Flammability Rating
V-0
Max. Temp.
105°C
Hole Center to Center
1.5 mm
Material
Nylon
Wire Type
Discrete
Connection Material
Brass
Features
Panel Mount Feature
Connector Type
Plug
Number of Rows
1
Current Rating
2 A
Contact Finish
Tin Plated
Number of Contacts
14
Contact Type
Pin
Flammability Rating
UL 94 V-0
