  9. MJ 8POS 2PORT UNSHLD CAT 5e
This item is Discontinued.

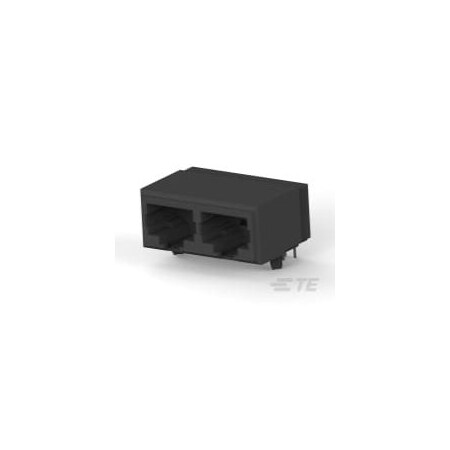

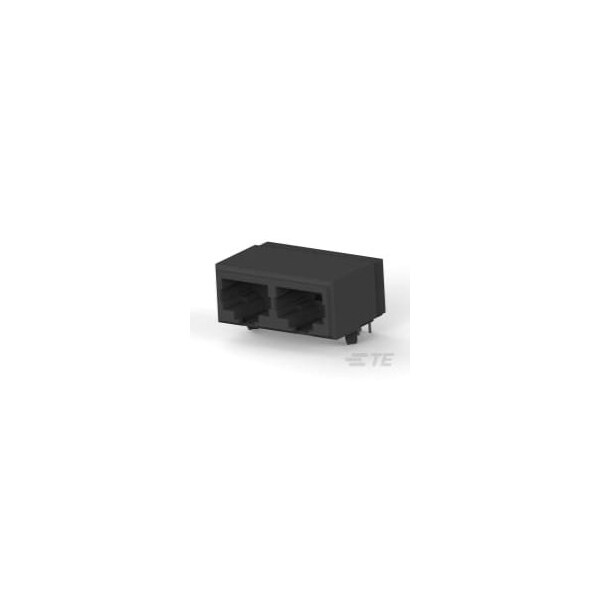

Te Connectivity MJ 8POS 2PORT UNSHLD CAT 5e 6368120-1

MJ 8POS 2PORT UNSHLD CAT 5e (Discontinued)

  • Mfr # 6368120-1
  • Zoro # G801018102
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
6368120-1
Zoro #
G801018102
UPC #
-
Country of Origin
China

Dimensions

Contact Mating Area Plating Material Thickness
50µin
PCB Tail Length
.14 in
Connector Height
.527 in

Details

Number of Positions
8
Shielded
No
Centerline (Pitch)
.04 in
Multiple Port Configuration
Ganged
Housing Color
Black
Housing Material
High Temperature Nylon
Port Configuration
Multiple Ports
UL Flammability Rating
UL 94V-0
Circuit Application
Signal
Status Indicator
None
Contact Mating Area Plating Material
Gold
Connector Mounting Type
Board Mount
Number of Contacts Loaded
8
Modular Jack & Plug Interface Type
RJ45
Keyed
No
Connector & Contact Terminates To
Printed Circuit Board
Connector Contact Density
Standard
PCB Contact Termination Area Plating Material
Tin
PCB Mount Orientation
Right Angle
Entry Location
Side
Operating Temperature Range
-40 to 185°F
Profile
Standard
Termination Method to Printed Circuit Board
Through Hole - Solder
Contact Underplating Material
Nickel
Latch Orientation
Standard - Latch Down
PCB Ground Tab Location
.18 in, 4.57 mm
Port Matrix Configuration
1 x 2
Contact Current Rating (Max)
.2 A, 1.5 A
Contact Base Material
Phosphor Bronze
Panel Mount Feature
Without
Connector Product Type
Connector Assembly
Connector Style
Jack
Performance Category
Cat 5
Modular Jacks & Plugs Products
RJ Type Jacks & Plugs
Grounding Options
None
Connectors & Connector Components Type
Connector
