This item is Discontinued.

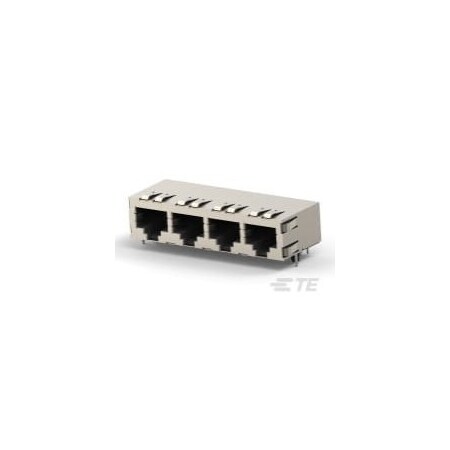

MJ ASSY 4P 8POS SH RVPGT CAT5 (Discontinued)
-
Mfr #
5406275-2
-
Zoro #
G001017943
Shop for similar items
Specifications
Contact Mating Area Plating Material Thickness
50µin
Connector & Contact Terminates To
Printed Circuit Board
Port Configuration
Multiple Ports
Connector Contact Density
Standard
Performance Category
Cat 5
Connector Product Type
Connector Assembly
Connectors & Connector Components Type
Connector
Termination Method to Printed Circuit Board
Through Hole - Solder
Number of Contacts Loaded
8
Shield Material
Copper Zinc Alloy
Number of Panel Ground Tabs
15
Contact Underplating Material
Nickel
Panel Mount Feature
Without
Housing Material
High Temperature Nylon
Port Matrix Configuration
1 x 4
Modular Jack & Plug Interface Type
RJ45
PCB Ground Tab Location
.145 in, 3.68 mm
Circuit Application
Signal
PCB Mount Orientation
Right Angle
Latch Orientation
Standard - Latch Down
Number of PCB Ground Tabs
3
Connector Mounting Type
Board Mount
Grounding Options
PCB and Panel Ground
Modular Jacks & Plugs Products
RJ Type Jacks & Plugs
PCB Contact Termination Area Plating Material
Tin
Contact Base Material
Phosphor Bronze
Multiple Port Configuration
Ganged
Operating Temperature Range
-40 to 185°F
UL Flammability Rating
UL 94V-0
Contact Mating Area Plating Material
Gold
Contact Current Rating (Max)
.2 A, 1.5 A
Centerline (Pitch)
.04 in
Shield Plating Material
Tin over Copper
