This item is Discontinued.

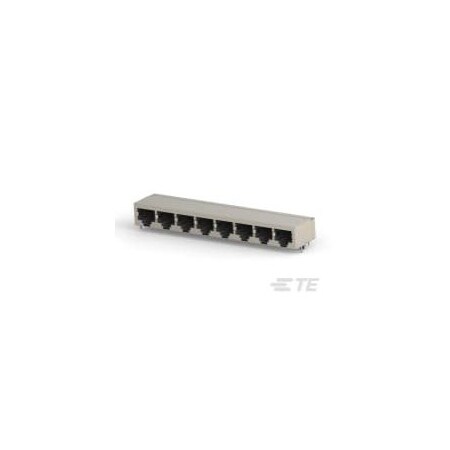

MJ ASSY 8P 8 POS CAT5 PCB GND (Discontinued)
-
Mfr #
5558505-1
-
Zoro #
G000984727
Shop for similar items
Specifications
Contact Mating Area Plating Material Thickness
50µin
Number of Contacts Loaded
8
Grounding Options
PCB Ground
Modular Jack & Plug Interface Type
RJ45
Contact Mating Area Plating Material
Gold
Modular Jacks & Plugs Products
RJ Type Jacks & Plugs
Number of PCB Ground Tabs
3
Port Matrix Configuration
1 x 8
Connector Mounting Type
Board Mount
Housing Material
High Temperature Nylon
Circuit Application
Signal
Operating Temperature Range
-40 to 185°F
Connector Product Type
Connector Assembly
Contact Underplating Material
Nickel
Contact Current Rating (Max)
1.5 A, .2 A
Connector Contact Density
Standard
Connectors & Connector Components Type
Connector
PCB Contact Termination Area Plating Material
Tin
Panel Mount Feature
Without
Shield Material
Copper Zinc Alloy
Termination Method to Printed Circuit Board
Through Hole - Solder
Multiple Port Configuration
Ganged
UL Flammability Rating
UL 94V-0
PCB Ground Tab Location
4.57 mm, .18 in
Centerline (Pitch)
.04 in
Performance Category
Cat 5
PCB Mount Orientation
Right Angle
Shield Plating Material
Tin over Copper
Contact Base Material
Phosphor Bronze
Latch Orientation
Standard - Latch Down
Port Configuration
Multiple Ports
Connector & Contact Terminates To
Printed Circuit Board
