  9. MJ LPF R/A 6P/4C PNL STOPS BU
This item is Discontinued.

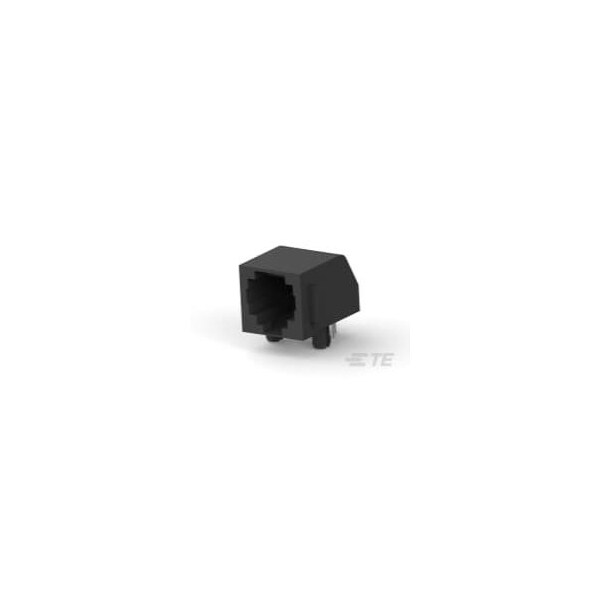

Te Connectivity MJ LPF R/A 6P/4C PNL STOPS BU 5555163-2

MJ LPF R/A 6P/4C PNL STOPS BU (Discontinued)

  • Mfr # 5555163-2
  • Zoro # G600966789
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
5555163-2
Zoro #
G600966789
UPC #
-
Country of Origin
India

Dimensions

PCB Thickness (Recommended)
.062 in
Contact Mating Area Plating Material Thickness
1.27 µm
PCB Tail Length
.15 in
Connector Height
.495 in

Details

Contact Underplating Material
Nickel
Connector System
Cable-to-Board
Connector Contact Density
Standard
Centerline (Pitch)
.04 in
Housing Material
PBT Polyester
Panel Mount Feature
With
Latch Orientation
Standard - Latch Down
Connector Style
Jack
Connectors & Connector Components Type
Connector
Profile
Low
Connector & Contact Terminates To
Printed Circuit Board
Panel Mount Feature Type
Panel Stops
Shielded
No
Operating Temperature Range
-40 to 185 °F
PCB Mount Orientation
Right Angle
Contact Current Rating (Max)
.2 A, 1.5 A
Connector Mounting Type
Board Mount, Panel
Number of Positions
6
Housing Color
Black
Modular Jack & Plug Interface Type
RJ14
Entry Location
Side
Performance Category
Cat 3
Contact Base Material
Phosphor Bronze
UL Flammability Rating
UL 94V-0
Contact Mating Area Plating Material
Gold
Port Configuration
Single Port
Modular Jacks & Plugs Products
RJ Type Jacks & Plugs
Port Matrix Configuration
1 x 1
PCB Contact Termination Area Plating Material
Tin
Termination Method to Printed Circuit Board
Through Hole - Solder
