  9. M/J LPF R/A 6P/4C TIN BULK PKG
This item is Discontinued.

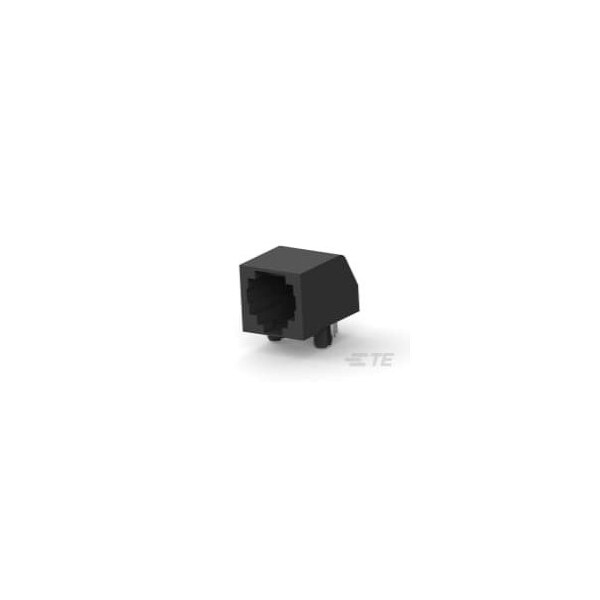

Te Connectivity M/J LPF R/A 6P/4C TIN BULK PKG 5555165-2

M/J LPF R/A 6P/4C TIN BULK PKG (Discontinued)

  • Mfr # 5555165-2
  • Zoro # G301048852
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
5555165-2
Zoro #
G301048852
UPC #
-
Country of Origin
India

Dimensions

Connector Height
.5 in
PCB Tail Length
.15 in
Contact Mating Area Plating Material Thickness
1.27µm
PCB Thickness (Recommended)
.062 in

Details

Number of Positions
6
Connectors & Connector Components Type
Connector
Connector & Contact Terminates To
Printed Circuit Board
Connector Mounting Type
Board Mount
Termination Method to Printed Circuit Board
Through Hole - Solder
Port Matrix Configuration
1 x 1
Modular Jacks & Plugs Products
RJ Type Jacks & Plugs
Connector System
Cable-to-Board
Shielded
No
Status Indicator
None
Grounding Options
None
Contact Mating Area Plating Material
Gold
PCB Contact Termination Area Plating Material
Tin
Contact Current Rating (Max)
1.5 A, .2 A
Modular Jack & Plug Interface Type
RJ14
UL Flammability Rating
UL 94V-0
Profile
Low
Connector Contact Density
Standard
Operating Temperature Range
-40 to 185°F
Connector Style
Jack
Housing Material
PBT Polyester
Contact Underplating Material
Nickel
Housing Color
Black
Contact Base Material
Phosphor Bronze
PCB Mount Orientation
Right Angle
Performance Category
Cat 3
Entry Location
Side
Panel Mount Feature
With
Port Configuration
Single Port
Centerline (Pitch)
.04 in
Keyed
No
Latch Orientation
Standard - Latch Down
