  9. MJ LPF R/A 6P/6C PNL STOPS BU

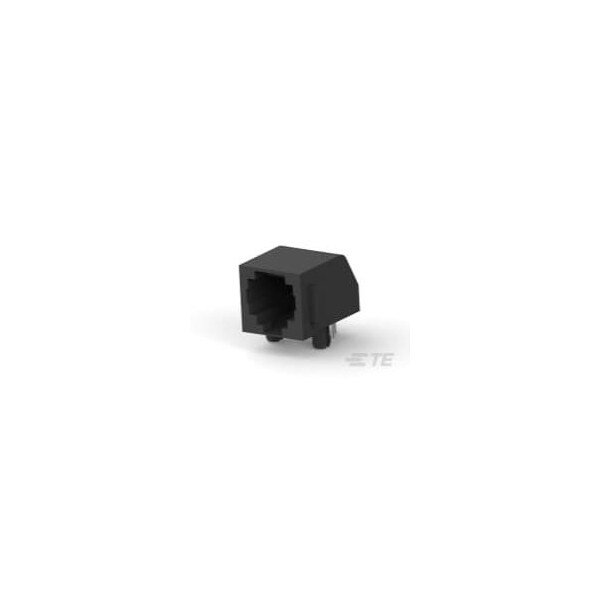

Te Connectivity MJ LPF R/A 6P/6C PNL STOPS BU 5555163-1 - main

MJ LPF R/A 6P/6C PNL STOPS BU

  • Mfr # 5555163-1

  • Zoro # G500966773

product price: $2.35
/ea
Sold in multiples of 36 for $84.60

Key Features

Centerline (Pitch)
.04 in
Connector Height
.49 in
Port Matrix Configuration
1 x 1
Termination Method to Printed Circuit Board
Through Hole - Solder
Shielded
No
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
5555163-1
Zoro #
G500966773
UPC #
-
Country of Origin
India

Dimensions

Connector Height
.49 in
PCB Thickness (Recommended)
.062 in
Contact Mating Area Plating Material Thickness
50 µin
PCB Tail Length
.15 in

Details

Centerline (Pitch)
.04 in
Port Matrix Configuration
1 x 1
Termination Method to Printed Circuit Board
Through Hole - Solder
Shielded
No
Housing Color
Black
Connector & Contact Terminates To
Printed Circuit Board
Contact Mating Area Plating Material
Gold
Latch Orientation
Standard - Latch Down
Contact Underplating Material
Nickel
Port Configuration
Single Port
Operating Temperature Range
-40 to 185 °F
PCB Mount Orientation
Right Angle
Connector Contact Density
Standard
UL Flammability Rating
UL 94V-0
Connector System
Cable-to-Board
Connector Mounting Type
Panel, Board Mount
Profile
Low
PCB Contact Termination Area Plating Material
Tin
Performance Category
Cat 3
Connector Product Type
Connector Assembly
Number of Positions
6
Connectors & Connector Components Type
Connector
Modular Jack & Plug Interface Type
RJ25
Contact Base Material
Phosphor Bronze
Panel Mount Feature Type
Panel Stops
Connector Style
Jack
Modular Jacks & Plugs Products
RJ Type Jacks & Plugs
Housing Material
PBT
Entry Location
Side
Contact Current Rating (Max)
1.5 A, .2 A
Panel Mount Feature
With
Circuit Application
Signal
