  9. MJ LPF R/A 6P/6C SMT PNL STOP
This item is Discontinued.

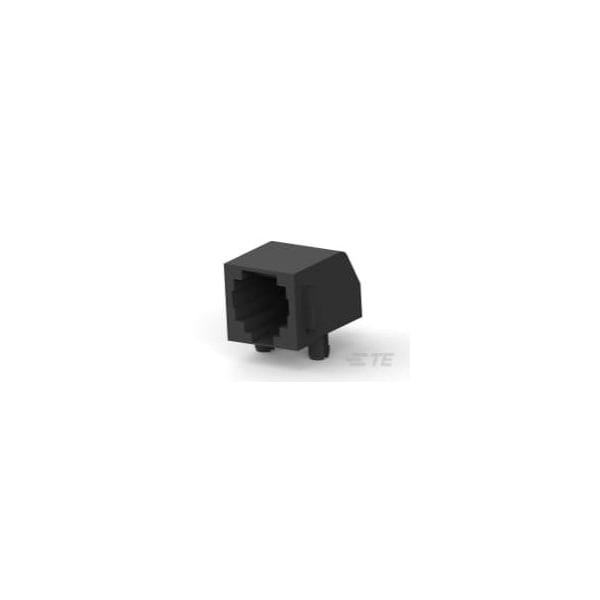

Te Connectivity MJ LPF R/A 6P/6C SMT PNL STOP 5555077-1

MJ LPF R/A 6P/6C SMT PNL STOP (Discontinued)

  • Mfr # 5555077-1
  • Zoro # G800966701
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
5555077-1
Zoro #
G800966701
UPC #
-
Country of Origin
India

Dimensions

PCB Thickness (Recommended)
.062 in
Contact Mating Area Plating Material Thickness
50 µin
Connector Height
.5 in

Details

UL Flammability Rating
UL 94V-0
Panel Mount Feature Type
Panel Stops
Centerline (Pitch)
.04 in
Performance Category
Cat 3
Profile
Low
Contact Current Rating (Max)
1.5 A, .2 A
Connector Product Type
Connector Assembly
Shielded
No
Port Configuration
Single Port
Contact Mating Area Plating Material
Gold
Contact Base Material
Phosphor Bronze
Housing Material
High Temperature Nylon
Contact Underplating Material
Nickel
Panel Mount Feature
With
Circuit Application
Signal
Connector Contact Density
Standard
Modular Jack & Plug Interface Type
RJ25
Latch Orientation
Standard - Latch Down
PCB Mount Orientation
Right Angle
Operating Temperature Range
-40 to 185 °F
Connector Style
Jack
Termination Method to Printed Circuit Board
Surface Mount
Connector System
Cable-to-Board
Modular Jacks & Plugs Products
RJ Type Jacks & Plugs
Entry Location
Side
Port Matrix Configuration
1 x 1
PCB Contact Termination Area Plating Material
Tin
Number of Positions
6
Housing Color
Black
Connector Mounting Type
Board Mount, Panel
Connectors & Connector Components Type
Connector
