  9. MJ LPF R/A 6P/6C SMT TRAY PACK
This item is Discontinued.

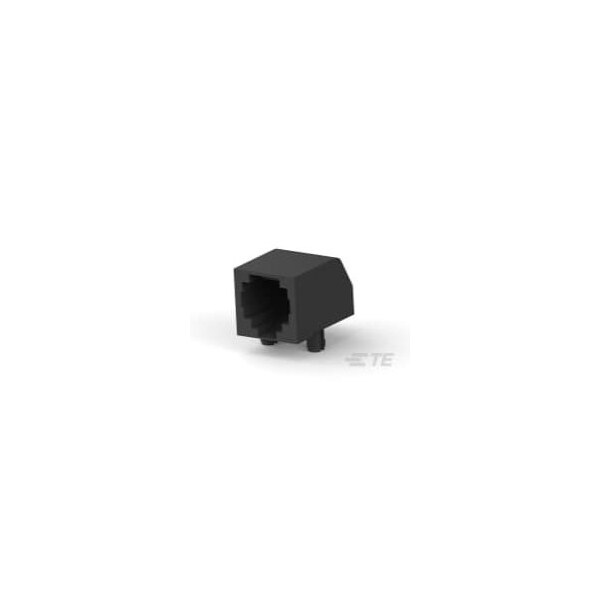

Te Connectivity MJ LPF R/A 6P/6C SMT TRAY PACK 5557314-1

MJ LPF R/A 6P/6C SMT TRAY PACK (Discontinued)

  • Mfr # 5557314-1
  • Zoro # G801018423
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
5557314-1
Zoro #
G801018423
UPC #
-
Country of Origin
India

Dimensions

Connector Height
.5 in
Contact Mating Area Plating Material Thickness
50µin
PCB Thickness (Recommended)
.062 in

Details

Number of Positions
6
Shielded
No
Port Configuration
Single Port
Profile
Low
Performance Category
Cat 3
Connector Product Type
Connector Assembly
Contact Base Material
Phosphor Bronze
UL Flammability Rating
UL 94V-0
Housing Color
Black
Panel Mount Feature
With
Grounding Options
None
Entry Location
Side
Connectors & Connector Components Type
Connector
Connector System
Cable-to-Board
Termination Method to Printed Circuit Board
Surface Mount
Port Matrix Configuration
1 x 1
Status Indicator
None
Connector Contact Density
Standard
Connector Style
Jack
Housing Material
High Temperature Nylon
Latch Orientation
Standard - Latch Down
PCB Mount Orientation
Right Angle
Connector Mounting Type
Panel, Board Mount
Contact Mating Area Plating Material
Gold
PCB Contact Termination Area Plating Material
Tin
Operating Temperature Range
-40 to 185°F
Modular Jacks & Plugs Products
RJ Type Jacks & Plugs
Centerline (Pitch)
.04 in
Circuit Application
Signal
Contact Current Rating (Max)
1.5 A, .2 A
Connector & Contact Terminates To
Printed Circuit Board
Contact Underplating Material
Nickel
Keyed
No
Modular Jack & Plug Interface Type
RJ25
