This item is Discontinued.

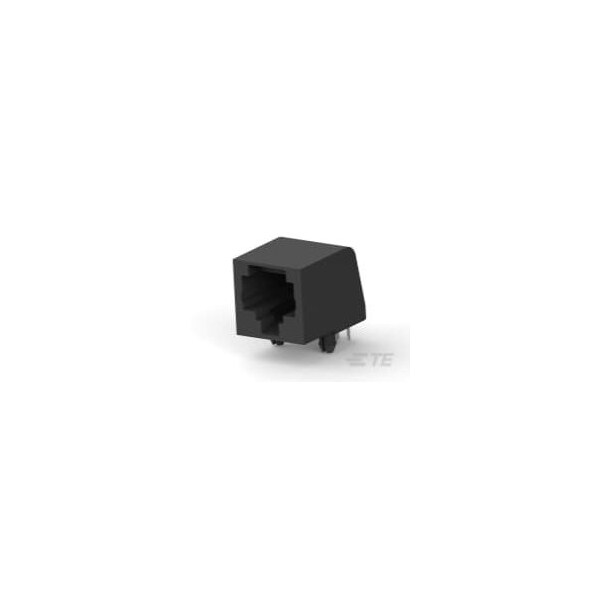

Te Connectivity MJ R/A 8P 5520426-4

MJ R/A 8P (Discontinued)

  • Mfr # 5520426-4
  • Zoro # G701017625
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
5520426-4
Zoro #
G701017625
UPC #
-
Country of Origin
India

Dimensions

Contact Mating Area Plating Material Thickness
50µin
PCB Thickness (Recommended)
.062 in
Connector Height
.6378 in
PCB Tail Length
.15 in

Details

Number of Positions
8
Shielded
No
Connectors & Connector Components Type
Connector
Status Indicator
None
Modular Jacks & Plugs Products
RJ Type Jacks & Plugs
Keyed
No
Housing Color
Black
Panel Mount Feature
With
Port Matrix Configuration
1 x 1
PCB Contact Termination Area Plating Material
Tin
Connector Mounting Type
Panel, Board Mount
UL Flammability Rating
UL 94V-0
PCB Mount Orientation
Right Angle
Contact Base Material
Phosphor Bronze
Connector Style
Jack
Modular Jack & Plug Interface Type
RJ45
Housing Material
PBT GF
Number of Contacts Loaded
8
Connector Product Type
Connector Assembly
Connector Contact Density
Standard
Centerline (Pitch)
.04 in
Contact Current Rating (Max)
.2 A, 1.5 A
Termination Method to Printed Circuit Board
Through Hole - Solder
Operating Temperature Range
-40 to 185°F
Port Configuration
Single Port
Entry Location
Side
Circuit Application
Signal
Connector & Contact Terminates To
Printed Circuit Board
Contact Underplating Material
Nickel
Contact Mating Area Plating Material
Gold
Performance Category
Cat 3
Latch Orientation
Standard - Latch Down
Profile
Standard
Grounding Options
None
