  9. M/J RJ45 Side entry 8P8C R/A 1

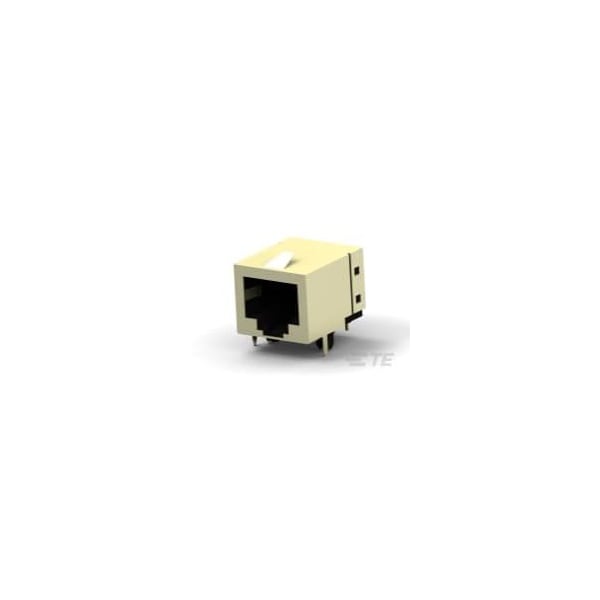

Te Connectivity M/J RJ45 Side entry 8P8C R/A 1 1-1734264-1 - main

M/J RJ45 Side entry 8P8C R/A 1

  • Mfr # 1-1734264-1

  • Zoro # G701048742

product price: $0.74
/ea
Sold in multiples of 102 for $75.48

Key Features

Number of Positions
8
Port Configuration
Single Port
Status Indicator
None
Connector Product Type
Connector Assembly
Keyed
No
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1-1734264-1
Zoro #
G701048742
UPC #
-
Country of Origin
Taiwan, Province of China

Dimensions

Connector Height
.52 in
PCB Tail Length
.11 in
PCB Thickness (Recommended)
1.6 mm
Contact Mating Area Plating Material Thickness
15µin

Details

Number of Positions
8
Port Configuration
Single Port
Status Indicator
None
Connector Product Type
Connector Assembly
Keyed
No
Housing Color
Black
PCB Ground Tab Location
4.57 mm, .18 in
Panel Mount Feature
Without
Centerline (Pitch)
.04 in
Connector Style
Jack
Modular Jack & Plug Interface Type
RJ45
Profile
Low
Number of Contacts Loaded
8
Number of PCB Ground Tabs
2
Contact Current Rating (Max)
1A
Connector & Contact Terminates To
Printed Circuit Board
Housing Material
PA 46
PCB Mount Orientation
Right Angle
Latch Orientation
Standard - Latch Down
Performance Category
Cat 5
Entry Location
Side
UL Flammability Rating
UL 94V-0
PCB Contact Termination Area Plating Material
Gold Flash
Contact Base Material
Phosphor Bronze
Grounding Options
PCB and Panel Ground
Shield Plating Material
Nickel
Operating Temperature Range
-40 to 185°F
Modular Jacks & Plugs Products
RJ Type Jacks & Plugs
Contact Mating Area Plating Material
Gold
Connectors & Connector Components Type
Connector
Connector Mounting Type
Board Mount
Connector Contact Density
Standard
Termination Method to Printed Circuit Board
Through Hole - Solder
Shielded
Yes
Shield Material
Brass
Contact Underplating Material
Nickel
Port Matrix Configuration
1 x 1
Circuit Application
Signal
