This item is Discontinued.

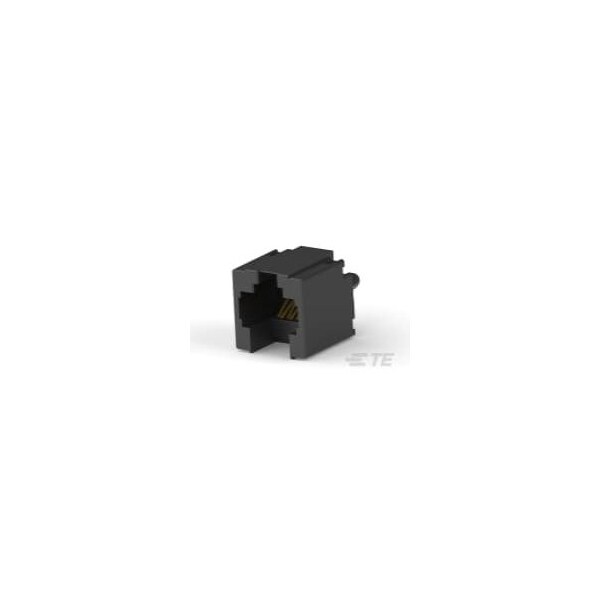

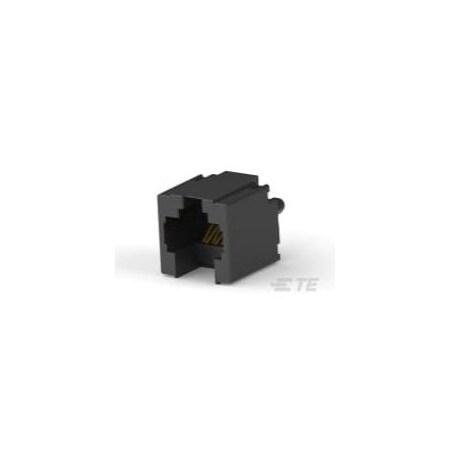

Te Connectivity MJ TE 8P COMPL.PIN CAT5 6116201-1

MJ TE 8P COMPL.PIN CAT5 (Discontinued)

  • Mfr # 6116201-1
  • Zoro # G101018499
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
6116201-1
Zoro #
G101018499
UPC #
-
Country of Origin
China

Dimensions

Connector Height
.65 in
Contact Mating Area Plating Material Thickness
50µin
PCB Thickness (Recommended)
.062 in
PCB Tail Length
.157 in

Details

Number of Positions
8
Shielded
No
Modular Jack & Plug Interface Type
RJ45
Profile
Standard
Connector Product Type
Connector Assembly
Keyed
No
Connector Mounting Type
Board Mount, Panel
Connector & Contact Terminates To
Printed Circuit Board
Entry Location
Top
Number of Contacts Loaded
8
Contact Mating Area Plating Material
Gold
PCB Mount Retention Type
Action/Compliant Tail
Contact Underplating Material
Nickel
Housing Color
Black
Connector Contact Density
Standard
Modular Jacks & Plugs Products
RJ Type Jacks & Plugs
PCB Mount Orientation
Vertical
UL Flammability Rating
UL 94V-0
Contact Current Rating (Max)
1.5 A
Port Configuration
Single Port
Centerline (Pitch)
.04 in
Port Matrix Configuration
1 x 1
Connectors & Connector Components Type
Connector
Status Indicator
None
Connector Style
Jack
Housing Material
Thermoplastic
Grounding Options
None
Operating Temperature Range
-40 to 185°F
Panel Mount Feature
With
Contact Base Material
Phosphor Bronze
Performance Category
Cat 5
PCB Ground Tab Location
.153 in, 3.89 mm
PCB Contact Termination Area Plating Material
Tin
Termination Method to Printed Circuit Board
Through Hole - Press-Fit
Latch Orientation
Standard - Latch Down
Circuit Application
Signal
