  9. Modular Connectors / Ethernet Connectors 2X8 Offset Stk Mj Shldled G

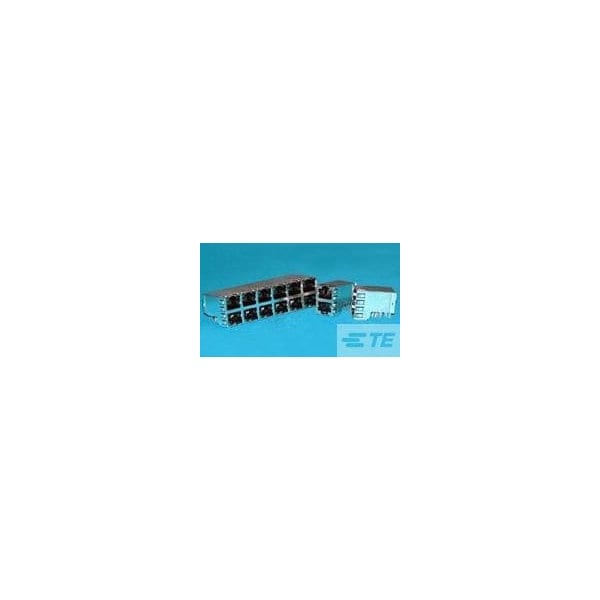

Te Connectivity Modular Connectors / Ethernet Connectors 2X8 Offset Stk Mj Shldled G 6116317-4 - main

Modular Connectors / Ethernet Connectors 2X8 Offset Stk Mj Shldled G

  • Mfr # 6116317-4

  • Zoro # G505930205

product price: $73.25
/ea
Sold in multiples of 2 for $146.50

Key Features

Number of Positions
8
PCB Thickness (Recommended)
.062 in
PCB Contact Termination Area Plating Material
Tin
Connector & Contact Terminates To
Printed Circuit Board
Connector Contact Density
Standard
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
6116317-4
Zoro #
G505930205
UPC #
-
Country of Origin
China

Dimensions

PCB Thickness (Recommended)
.062 in
PCB Tail Length
.171 in
Contact Mating Area Plating Material Thickness
15µin
Connector Height
.905 in

Details

Number of Positions
8
PCB Contact Termination Area Plating Material
Tin
Connector & Contact Terminates To
Printed Circuit Board
Connector Contact Density
Standard
Circuit Application
Signal
Contact Mating Area Plating Material
Gold
Housing Color
Black
Shielded
Yes
Panel Mount Feature
Without
Grounding Options
PCB and Panel Ground
Port Configuration
Multiple Ports
Connector Product Type
Connector Assembly
Number of PCB Ground Tabs
7
PCB Ground Type
Grounding Clips
Contact Base Material
Phosphor Bronze
Connector Style
Jack
Profile
Offset - Overhangs PCB
Operating Temperature Range
-22 to 158°F
Multiple Port Configuration
Stacked
LED Color (Bottom Right)
Green
Keyed
No
Number of Contacts Loaded
8
Entry Location
Side
LED Color (Bottom Left)
Green
Centerline (Pitch)
.04 in
Connectors & Connector Components Type
Connector
Shield Material
.010 [.25] Copper Alloy
Performance Category
Cat 5e
Status Indicator
LED
Port Matrix Configuration
2 x 8
Modular Jack & Plug Interface Type
RJ45
LED Color (Top Right)
Green
Modular Jacks & Plugs Products
RJ Type Jacks & Plugs
Termination Method to Printed Circuit Board
Through Hole - Press-Fit
UL Flammability Rating
UL 94V-0
LED Color (Top Left)
Green
Latch Orientation
Standard - Latch Down
Shield Plating Material
Tin over Copper
PCB Mount Orientation
Right Angle
Connector Mounting Type
Board Mount, Panel
Housing Material
PBT GF
Contact Underplating Material
Nickel
Number of Grounding Clips
8
Grounding Tab Plating Material
Tin over Copper
