This item is Discontinued.

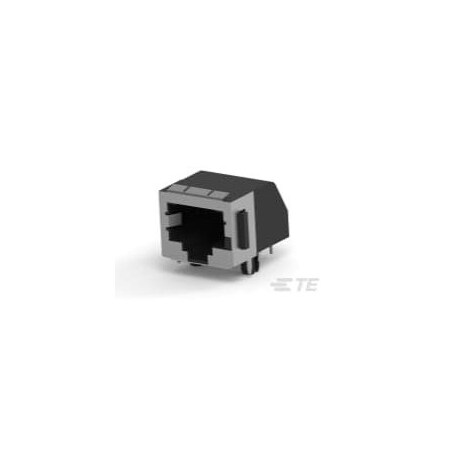

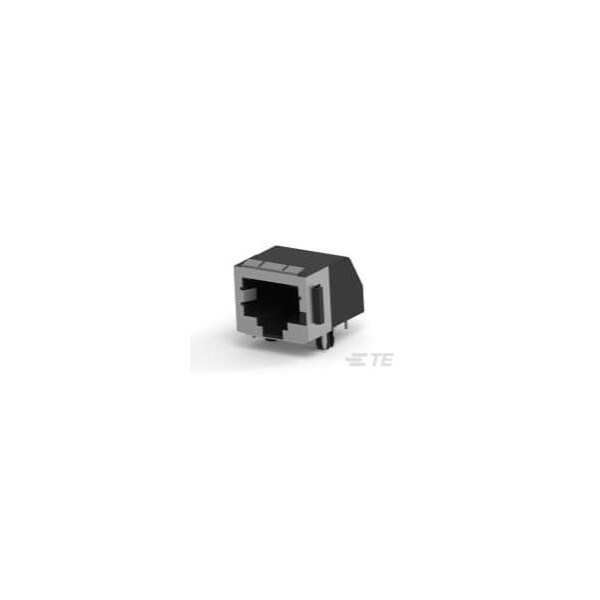

Te Connectivity Modular Connectors / Ethernet Connectors Mj, R/A, 8P, Shld 5558382-1

Modular Connectors / Ethernet Connectors Mj, R/A, 8P, Shld (Discontinued)

  • Mfr # 5558382-1
  • Zoro # G405982069
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
5558382-1
Zoro #
G405982069
UPC #
-
Country of Origin
India

Dimensions

Connector Height
.495 in
PCB Thickness (Recommended)
.062 in
Contact Mating Area Plating Material Thickness
50µin
PCB Tail Length
.11 in

Details

Shielded
Yes
Number of Positions
8
Housing Material
PBT Polyester
Circuit Application
Signal
Number of PCB Ground Tabs
2
Panel Mount Feature
With
Connector Product Type
Connector Assembly
Latch Orientation
Standard - Latch Down
PCB Ground Tab Location
3.05 mm, .12 in
Shield Material
Copper Alloy
Entry Location
Side
Port Configuration
Single Port
Number of Contacts Loaded
8
Grounding Options
PCB and Panel Ground
Connector Mounting Type
Board Mount, Panel
Connector Style
Jack
Profile
Low
Connector & Contact Terminates To
Printed Circuit Board
Contact Underplating Material
Nickel
Status Indicator
None
Connectors & Connector Components Type
Connector
Centerline (Pitch)
.04 in
Connector Contact Density
Standard
Shield Plating Material
Tin
Contact Mating Area Plating Material
Gold
Termination Method to Printed Circuit Board
Through Hole - Solder
Modular Jacks & Plugs Products
RJ Type Jacks & Plugs
Port Matrix Configuration
1 x 1
PCB Contact Termination Area Plating Material
Tin
Housing Color
Black
Contact Current Rating (Max)
.2 A, 1.5 A
Operating Temperature Range
-40 to 185°F
PCB Mount Orientation
Right Angle
Modular Jack & Plug Interface Type
RJ45
Keyed
Yes
Contact Base Material
Phosphor Bronze
Panel Ground Location
Top/Bottom
Performance Category
Cat 3
UL Flammability Rating
UL 94V-0
