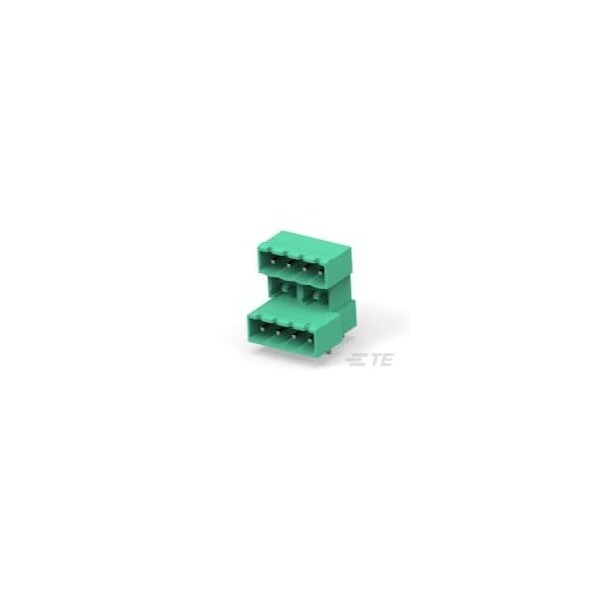

Modular Terminal Block, 15A, 3Mm2, 2 Row(S), 2 Deck(S) (Discontinued)
- Mfr # 1-284061-2
- Zoro # G405797618
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
1-284061-2
Zoro #
G405797618
UPC #
-
Country of Origin
Italy
Dimensions
PCB Tail Length
3.5 mm [ .138 in ]
Details
Housing Color
Green
Side Stackable
No
Number of Rows
2
Interlock
Without
Screw Flange
Without
Voltage (VAC)
300
Connector Style
Header
Contact Mating Area Plating Material
Tin
Block Type
None
Contact Mount
Through Hole
Threaded Flange
Without
Housing Material
Polyamide 6.6 GF
Contact Base Material
Copper Alloy
Applies To
Printed Circuit Board
Number of Positions
12
Closed End
With
Current Rating (Max) (A)
15
Mounting Angle
Right Angle
Centerline
5.08 mm [ .2 in ]
Screwless Terminal Block
Yes
Shrouded
Yes
