Product Information
MFR #
1658063-3
Zoro #
G401067234
UPC #
-
Country of Origin
China
Dimensions
Height
4.06 mm
Contact Plating Thickness
0.25 µm
Details
Item

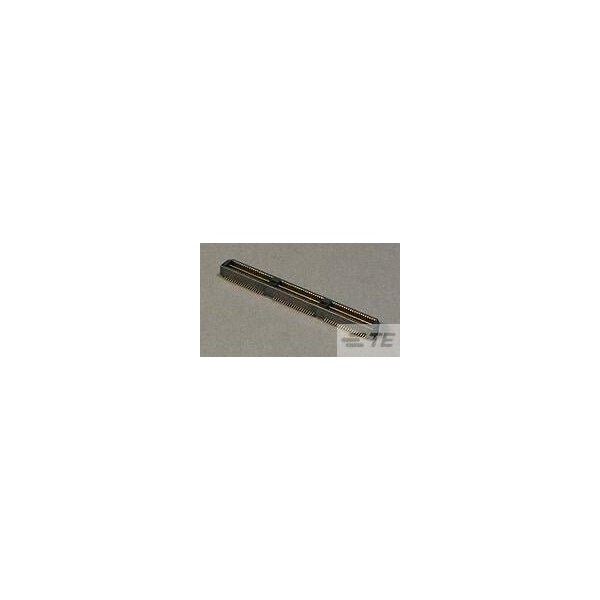

PCB Mount Header
Max. Voltage
125V AC
Max. Temp.
125°C
Application
Signal
Series
Mictor SB
Material
Liquid Crystal Polymer
Features
With Boss
For Use With
Receptacle Assembly
Number of Rows
2
Number of Contacts
120
Terminal Type
Surface Mount
Contact Finish
Select Gold Plated
Connection Material
Phosphor Bronze
Connector Terminates To
Printed Circuit Board
Terminal Finish
Gold Plated
Current Rating
1.25 A; 9.5 A
Hole Center to Center
0.8 mm
Contact Type
Pin
