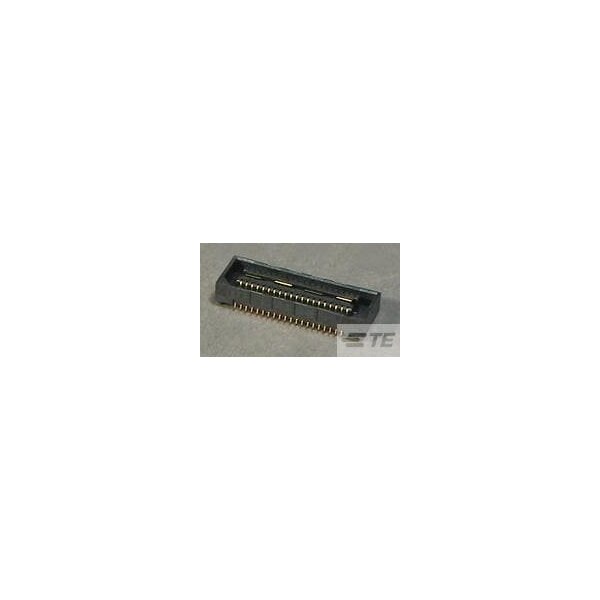

MSB0.80RC-ASY28DP GP F VCTY
Mfr # 3-1658043-1
Zoro # G201067793
product price:Â
$
11.49
/ea
Sold in multiples of 8 for $91.92
Key Features
Max. Voltage
125V AC
Max. Temp.
125°C
Application
Signal
Series
Mictor SB
Height
3.05 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 3-1658043-1
- Zoro #
- G201067793
- UPC #
- -
- Country of Origin
- Mexico
Dimensions
- Height
- 3.05 mm
- Contact Plating Thickness
- 0.12 µm
Details
- Item
- PCB Mount Receptacle
- Max. Voltage
- 125V AC
- Max. Temp.
- 125°C
- Application
- Signal
- Series
- Mictor SB
- Material
- Liquid Crystal Polymer
- Features
- With Boss
- Number of Rows
- 2
- Hole Center to Center
- 0.8 mm
- Terminal Type
- Surface Mount
- Number of Contacts
- 28
- Contact Finish
- Select Gold Flash
- Current Rating
- 1.25 A; 9.5 A
- Connector Terminates To
- Printed Circuit Board
- Connection Material
- Phosphor Bronze
- Terminal Finish
- Gold Plated
- Contact Type
- Socket
