This item is Discontinued.

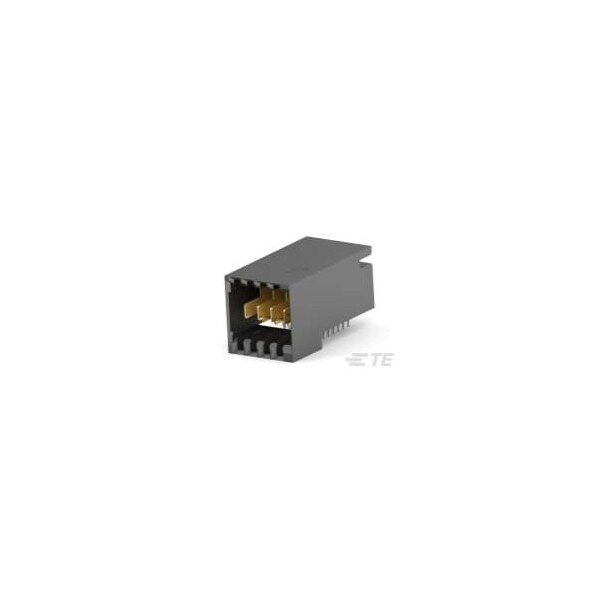

Te Connectivity MULTIGIG RT PWR .8 R/A HDR 4P PBFR 1-1410271-8

MULTIGIG RT PWR .8 R/A HDR 4P PBFR (Discontinued)

  • Mfr # 1-1410271-8
  • Zoro # G400937453
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1-1410271-8
Zoro #
G400937453
UPC #
-
Country of Origin
China

Dimensions

Width
17.8 mm
Height
18.4 mm
Hole Dia.
0.61 mm
Length
28.73 mm
Contact Plating Thickness
1.27 µm

Details

Item
Header
Color
Black
Insulation Material
Liquid Crystal Polymer
Max. Voltage
250V AC/DC
Maximum Voltage
250 V
Application
Power
Current
20 A
Standards
UL 94 V-0
Maximum Operating Temperature
105 Degrees C
UL 94 Flammability Rating
V-0
Terminal Type
Through Hole - Press-Fit
Connection Material
Phosphor Bronze
Max. Temp.
105°C
Features
Shrouded
Hole Center to Center
3.6 mm
Material
Liquid Crystal Polymer
Number of Rows
1
Number of Contacts
4
Contact Type
Tab
Current Rating
20 A
Contact Finish
Gold Plated
Connector Terminates To
Printed Circuit Board
Terminal Finish
Matte Tin over Nickel
Flammability Rating
UL 94 V-0
