  11. NC6-P107-08=NC6 ASSEMBLY
This item is Discontinued.

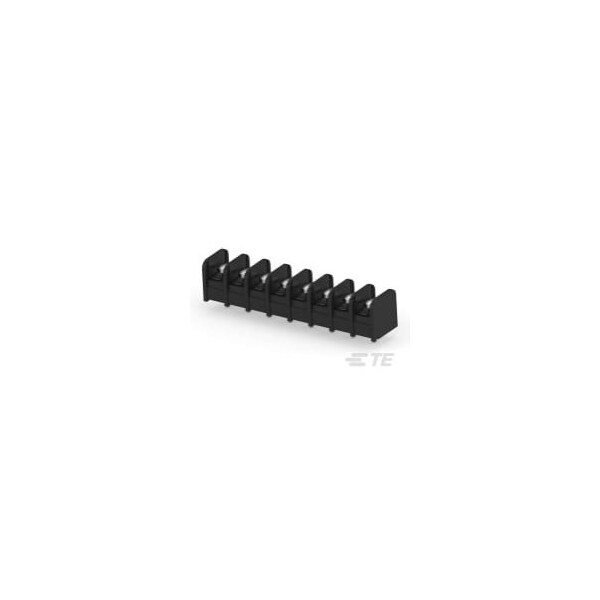

Te Connectivity NC6-P107-08=NC6 ASSEMBLY 1-1437664-1

NC6-P107-08=NC6 ASSEMBLY (Discontinued)

  • Mfr # 1-1437664-1
  • Zoro # G600951945
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1-1437664-1
Zoro #
G600951945
UPC #
-
Country of Origin
Taiwan, Province of China

Dimensions

Length
3.0589 in
Screw Size
11841

Details

Voltage
300 V
Color
Black
Barrier Strip Style
Dual Barrier
Current Rating (Max)
20 A
Mounting Options
None
Number of Levels
1
Mounting Angle
Vertical
Bottom Termination Style
Printed Circuit Pin
Terminal Material
Copper Alloy
Current Rating
20 A
Centerline (Pitch)
.375 in
Number of Rows
1
Operating Temperature Range
-40 to 221 °F
Mounting Bushing
With
Product Type
Barrier Strip
Profile
Low
Block Style
Flat
Mounting Ears
Without
Housing Material
Polyamide
Number of Positions
8
Wire Range
22 to 12 AWG
UL Flammability Rating
UL 94V-0
Screw Material
Steel
Screw Head Type
Combo Phil-Slot
Connector & Contact Terminates To
Printed Circuit Board
Mounting Insert
Without
Top Hardware
Binding Combo Head
Terminal Plating Material
Tin
Screw Plating Material
Zinc
