Product Information
MFR #
5-1419128-0
Zoro #
G801017549
UPC #
-
Country of Origin
China
Details
Item

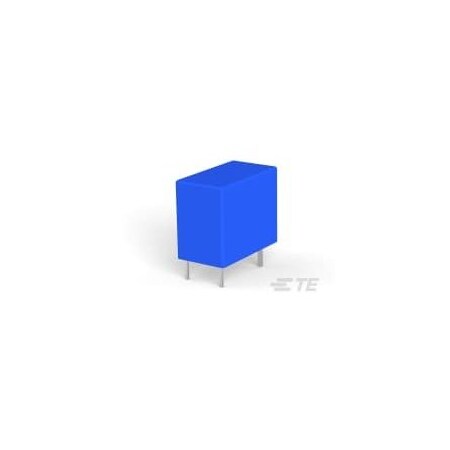

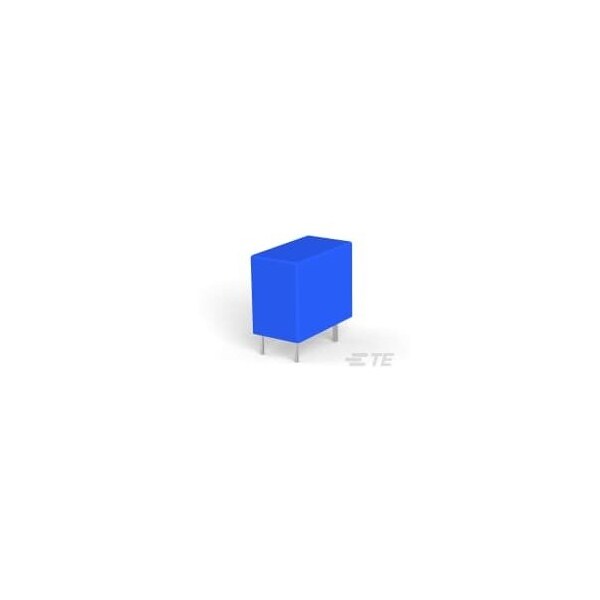

Power Relay
Mounting Style
Printed Circuit Board
Electrical Connection
PCB-THT
Coil Voltage
12V DC
Contact Form
1 Form A (NO)
Features
UL Coil Insulation Class B, Sensitive Version
Power Consumption - Relay
200 mW
Contact Material
W + AgSnO2
Number of Poles
1
Operating Temp. Range
50 to 70°C
Coil Resistance
720 Ω
Contact Limiting Making Current
8A
Protection Category
RTII
Switching Current
100mA @ 5V
Insulation Creepage
.141 in
Contact Limiting Continuous Current
8A
Insulation Clearance
.125 in
Contact Voltage Rating
250 VAC, 30 VDC
Contact Limiting Breaking Current
8A
Contact Rating
0.333333333333333A
Dielectric Voltage
3000 Vrms Coil and Contact; 750 Vrms Open Contacts
Contact Limiting Short-Time Current
8A
Switching Voltage
277 VAC, 30 VDC
Coil Type
Monostable, DC
