Product Information
MFR #
5-1419124-6
Zoro #
G301018374
UPC #
-
Country of Origin
China
Details

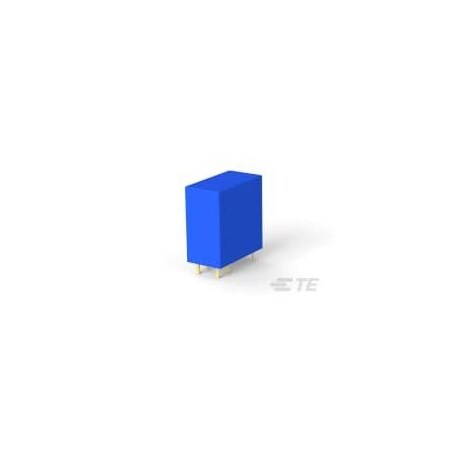

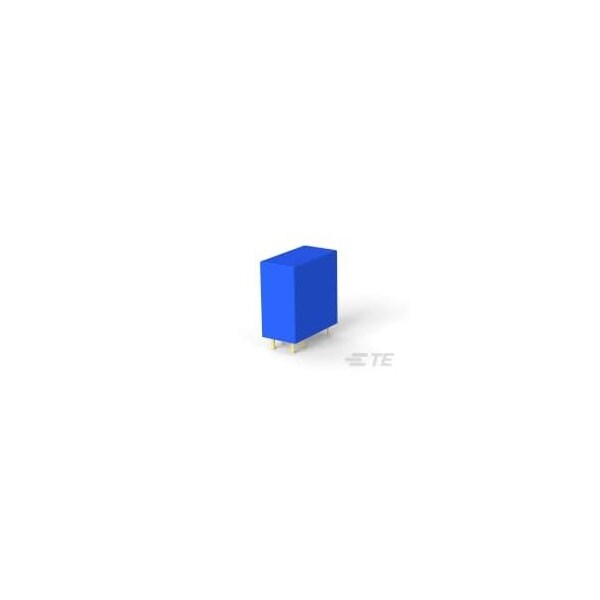

Item - Relay
Standard Power Relay
Coil Volts
12V DC
Contact Form - Relay
2 Form A (NO)
Power Consumption - Relay
540 mW
Contact Material
AgNi90/10
Number of Poles
2
Features
UL Coil Insulation Class A
Protection Category
RTII
Dielectric Voltage
2500 Vrms Adjacent Contacts; 4000 Vrms Coil and Contact; 1000 Vrms Open Contacts
Coil Resistance
270 Ω
Mounting Type
Printed Circuit Board
Contact Voltage Rating
240 VAC
Contact Limiting Making Current
3A
Contact Limiting Breaking Current
3A
Coil Type
Monostable, DC
Operating Temp. Range
50 to 70°C
Switching Current
100mA @ 5V
Contact Rating
0.125A
Switching Voltage
30 VDC, 240 VAC
Insulation Creepage
.276 in
Contact Limiting Continuous Current
3A
Contact Limiting Short-Time Current
3A
Terminal Type
PCB-THT
Insulation Clearance
.276 in
