Contact our U.S. based teamSpecifications
Product Information
MFR #
1-1649399-6
Zoro #
G101017485
UPC #
-
Country of Origin
Unknown
Details
Item

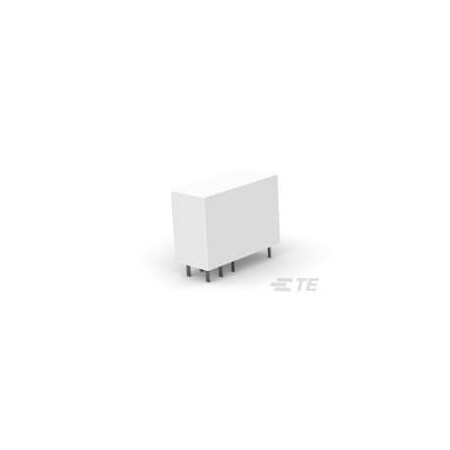

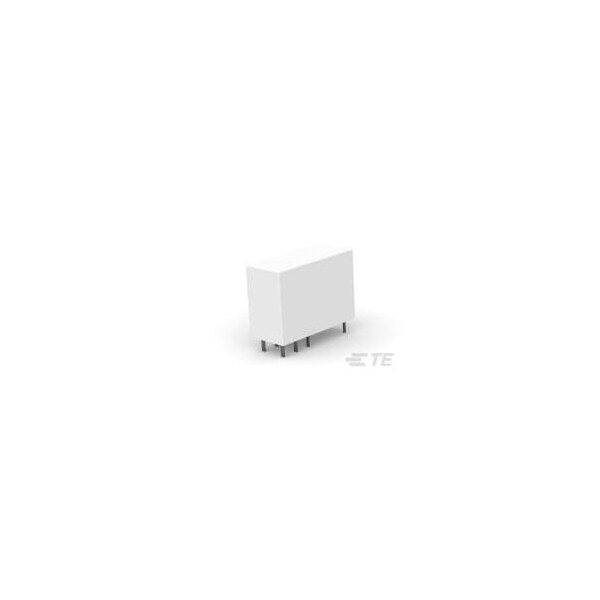

Power Relay
Mounting Style
Printed Circuit Board
Electrical Connection
PCB-THT
Coil Voltage
48V DC
Contact Form
1 Form C (CO)
Contact Material
AgSnO
Number of Poles
1
Power Consumption - Relay
540 mW
Features
UL Coil Insulation Class A, Sensitive Version
Coil Resistance
4400 Ω
Dielectric Voltage
5000 Vrms Coil and Contact; 1000 Vrms Open Contacts
Insulation Creepage
.315 in
Contact Limiting Short-Time Current
16 A
Contact Rating
16 A
Coil Type
Monostable, DC
Contact Voltage Rating
240 VAC
Switching Current
100mA @ 5V
Operating Temp. Range
50 to 70°C
Contact Limiting Continuous Current
16 A
Contact Limiting Breaking Current
16 A
Insulation Clearance
.217 in
Switching Voltage
24 VDC, 240 VAC
Contact Limiting Making Current
16 A
Protection Category
RTII
