Shop TE CONNECTIVITY

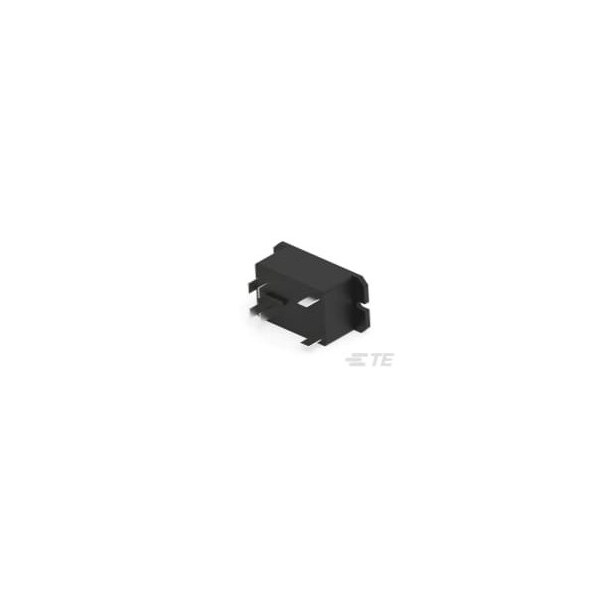

Panel Mount, Flange Mount, Power Relay, 40 A, Quick Connect

  • Mfr # 1-1393212-7
  • Zoro # G805866112
product price:
$
40.99
/ea
Sold in multiples of 4 for $163.96

Key Features

Mounting Style
Panel Mount
Electrical Connection
Quick Connect
Coil Voltage
24V DC
Current Rating
30/40 A
Contact Rating (AC)
40 A @ 277V, 30 A @ 277V, 10 A @ 600V
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
1-1393212-7
Zoro #
G805866112
UPC #
-
Country of Origin
China

Details

Item
General Purpose Power Relay
Mounting Style
Panel Mount
Electrical Connection
Quick Connect
Coil Voltage
24V DC
Current Rating
30/40 A
Contact Rating (AC)
40 A @ 277V, 30 A @ 277V, 10 A @ 600V
Features
UL Coil Insulation Class F
Number of Poles
2
Power Consumption - Relay
1700 mW
Contact Material
AgCdO
Contact Limiting Making Current
40 A
Protection Category
RTIII
Switching Current
500mA @ 12V
Contact Rating
30 A
Switching Voltage
600 VAC
Contact Limiting Short-Time Current
30 A
Contact Limiting Breaking Current
40 A
Coil Type
Monostable, DC
Contact Voltage Rating
277 VAC
Operating Temp. Range
70 to 85°C
Coil Resistance
350 Ω
Insulation Creepage
.374 in
Insulation Clearance
.315 in
Contact Limiting Continuous Current
40 A
Dielectric Voltage
2000 Vrms Adjacent Contacts; 4000 Vrms Coil and Contact; 1500 Vrms Open Contacts
Base Shape
Square
Contact Form
DPST-NO

Description

Power/Signal Relay, 2 Form A, Spst-No, Momentary, 0.077A (Coil), 24Vdc (Coil), 1700Mw (Coil), 30A (Contact), Dc Input, Ac Output, Panel Mount
