Shop TE CONNECTIVITY

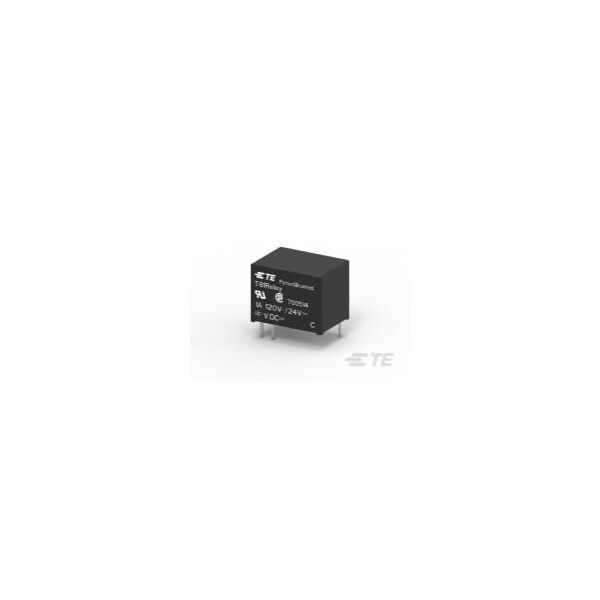

PCB, General Purpose Relay, 1 A, Through Hole

  • Mfr # 7-1393779-1

  • Zoro # G101034789

product price:
$
2.59
/ea
Sold in multiples of 36 for $93.24

Key Features

Mounting Style
PCB
Electrical Connection
Through Hole
Coil Voltage
12V DC
Current Rating
1 A
Number of Poles
1
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
7-1393779-1
Zoro #
G101034789
UPC #
-
Country of Origin
China

Details

Item
General Purpose Relay
Mounting Style
PCB
Electrical Connection
Through Hole
Coil Voltage
12V DC
Current Rating
1 A
Number of Poles
1
Contact Material
Nickel-Palladium Alloy
Power Consumption - Relay
450 mW
Features
Standard Type
Contact Limiting Breaking Current
1A
Coil Type
Monostable, AC/DC
Contact Rating
1A
Switching Current
1mA @ 1V
Dielectric Voltage
1000 Vrms Coil and Contact; 500 Vrms Open Contacts
Contact Voltage Rating
24 VDC, 120 VAC
Operating Temp. Range
-30 to 60°C
Contact Limiting Short-Time Current
1A
Protection Category
RTIII
Coil Resistance
320 Ω
Insulation Clearance
.059 in
Contact Limiting Making Current
1A
Contact Limiting Continuous Current
2A
Insulation Creepage
.069 in
Switching Voltage
60 VDC, 125 VAC
Contact Rating (DC)
1 A @ 24V
Contact Rating (AC)
1 A @ 120V
Number of Pins
5
Contact Form
1 Form C (CO)
