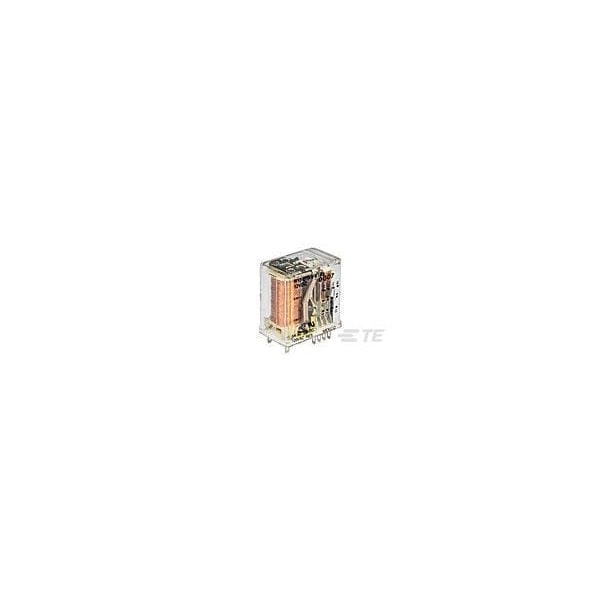

Te Connectivity PCB, General Purpose Relay, 3 A, PCB 1393767-3 - main

PCB, General Purpose Relay, 3 A, PCB

  • Mfr # 1393767-3

  • Zoro # G600983052

product price: $50.75
/ea
Sold in multiples of 2 for $101.50

Key Features

Mounting Style
PCB
Electrical Connection
PCB
Coil Voltage
12V DC
Current Rating
3 A
Contact Material
Ag
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1393767-3
Zoro #
G600983052
UPC #
-
Country of Origin
Mexico

Dimensions

Product Width
.736 in
Length Class (Mechanical)
20 to 25 mm
Product Height
1.189 in
Height Class (Mechanical)
30 to 40 mm
Width Class (Mechanical)
16 to 20 mm
Product Length
.949 in

Details

Item
General Purpose Relay
Mounting Style
PCB
Electrical Connection
PCB
Coil Voltage
12V DC
Current Rating
3 A
Contact Material
Ag
Contact Limiting Short-Time Current
3A
Contact Plating Material
Gold
Environmental Category of Protection
RTI
Insulation Initial Dielectric Between Adjacent Contacts
1000 Vrms
Contact Voltage Rating
120 VAC
Actuating System
DC
Insulation Initial Dielectric Between Open Contacts
500 Vrms
Insulation Initial Resistance
10000 MΩ
Coil Resistance
185 Ω
Coil Magnetic System
Monostable, DC
Coil Power Rating DC
900 mW
Operating Temperature Range
-55 to 75°C
Contact Switching Load (Min)
0mA @ 0V
Environmental Ambient Temperature (Max)
75°C
Coil Special Features
Sensitive Version
Coil Power Rating Class
800 to 1000 mW
Contact Current Class
16 A, 2 to 5 A
Contact Current Rating (Max)
3A
Contact Limiting Continuous Current
3A
Power Relay Type
Industrial Panel Plug-In
Contact Arrangement
4 Form C (CO)
Contact Limiting Making Current
3A
Insulation Initial Dielectric Between Coil & Contact Class
500 to 1000 V
Contact Special Features
Bifurcated/Twin Contacts
Environmental Ambient Temperature Class
70 to 85°C
Contact Limiting Breaking Current
3A
Contact Number of Poles
4
Insulation Initial Dielectric Between Contacts & Coil
1000 Vrms
