Shop TE CONNECTIVITY

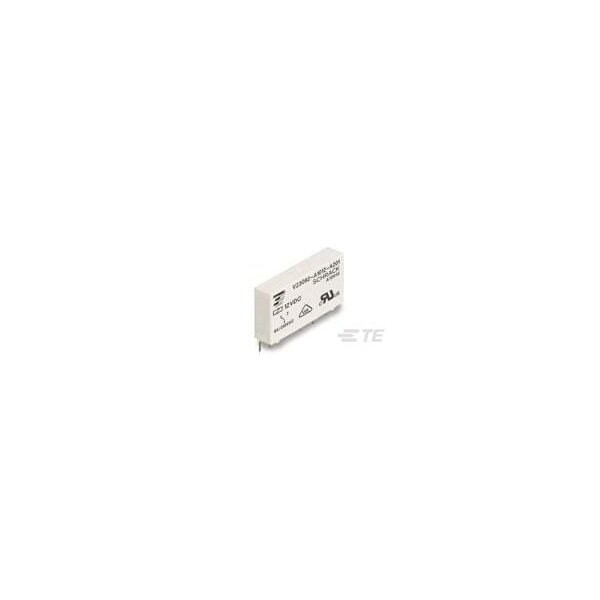

PCB, PCB Relay, 10 A, PCB

  • Mfr # 9-1415067-1
  • Zoro # G801034362
product price:
$
9.45
/ea
Sold in multiples of 20 for $189.00

Key Features

Mounting Style
PCB
Electrical Connection
PCB
Coil Voltage
5V DC
Current Rating
10 A
Contact Material
AgSnO
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
9-1415067-1
Zoro #
G801034362
UPC #
-
Country of Origin
Czechia

Details

Item
General Purpose Power Relay
Mounting Style
PCB
Electrical Connection
PCB
Coil Voltage
5V DC
Current Rating
10 A
Contact Material
AgSnO
Power Consumption - Relay
170 mW
Number of Poles
1
Contact Limiting Short-Time Current
6A
Contact Rating
6A
Coil Type
Monostable, DC
Insulation Creepage
8 mm [ .315 in ]
Coil Resistance
147 Ω
Contact Limiting Breaking Current
6A
Contact Voltage Rating
250V AC
Switching Current
100mA @ 12V
Operating Temp. Range
70 to 85°C
Dielectric Voltage
4000 Vrms Coil and Contact; 1000 Vrms Open Contacts
Contact Limiting Continuous Current
10A
Protection Category
RTIII
Contact Limiting Making Current
6A
Insulation Clearance
6 mm [ .236 in ]
Switching Voltage
400V AC
Contact Form
SPST-NO
Contact Rating (AC)
6 A @ 250V
